This Jundingda Machinery industrial hot glue machine is equipped with an intelligent PLC control system, allowing users to accurately adjust the temperature, glue amount and glue application speed to adapt to different production processes and material requirements. The modular structure and convenient maintenance design of the Industrial Hot Glue Machine make operation easier, while supporting quick replacement of glue sticks and cleaning. Whether it is processing small work pieces or large-scale production, this equipment can provide efficient and reliable solutions, and is an ideal choice for all kinds of industrial production.

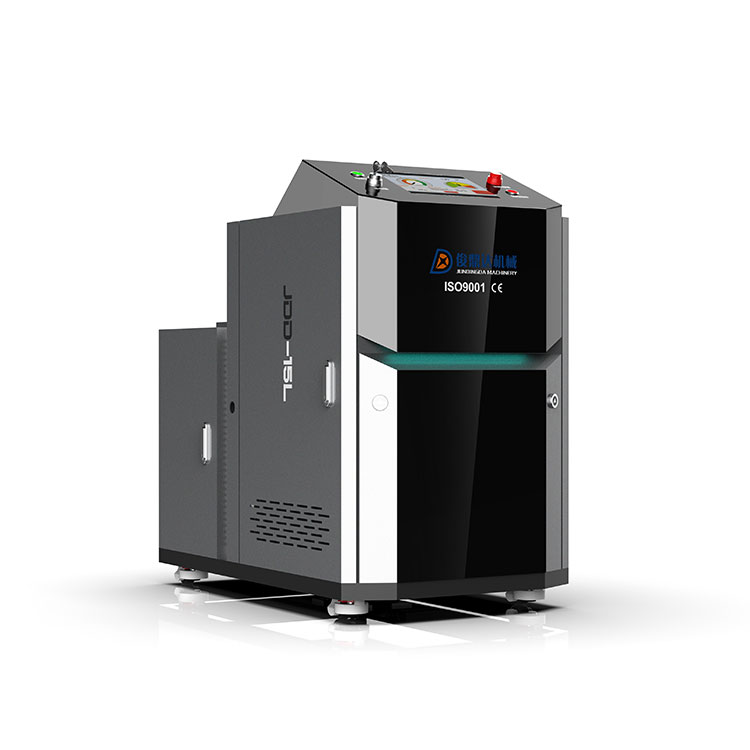

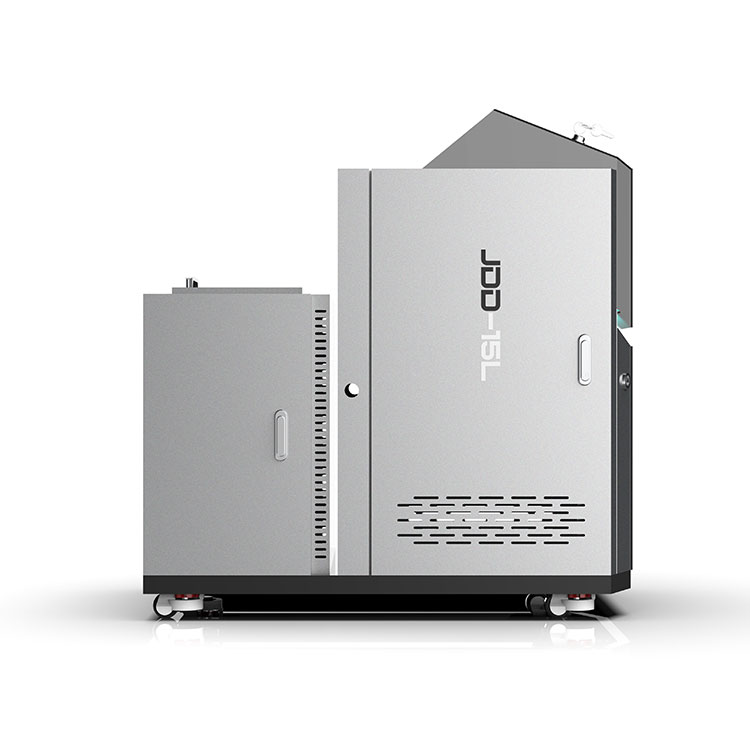

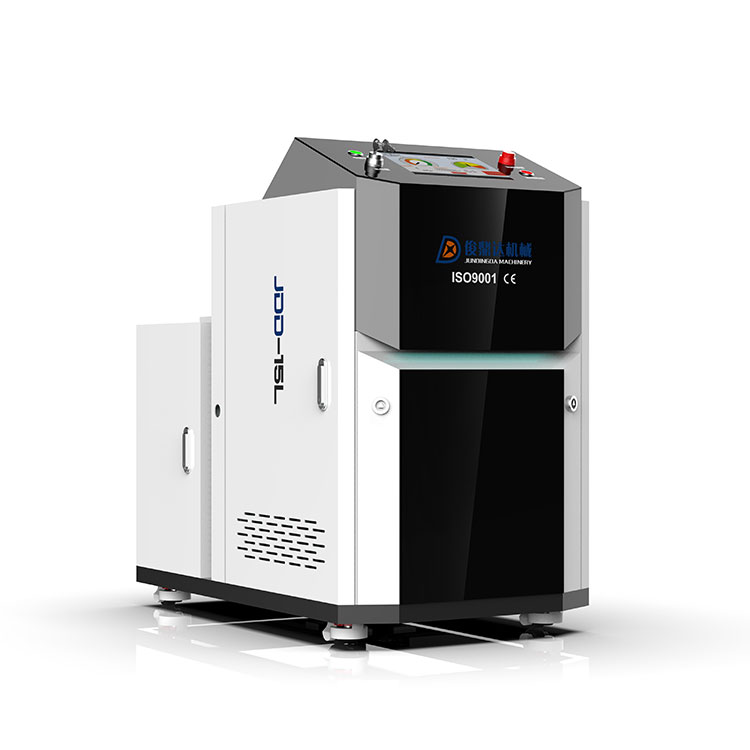

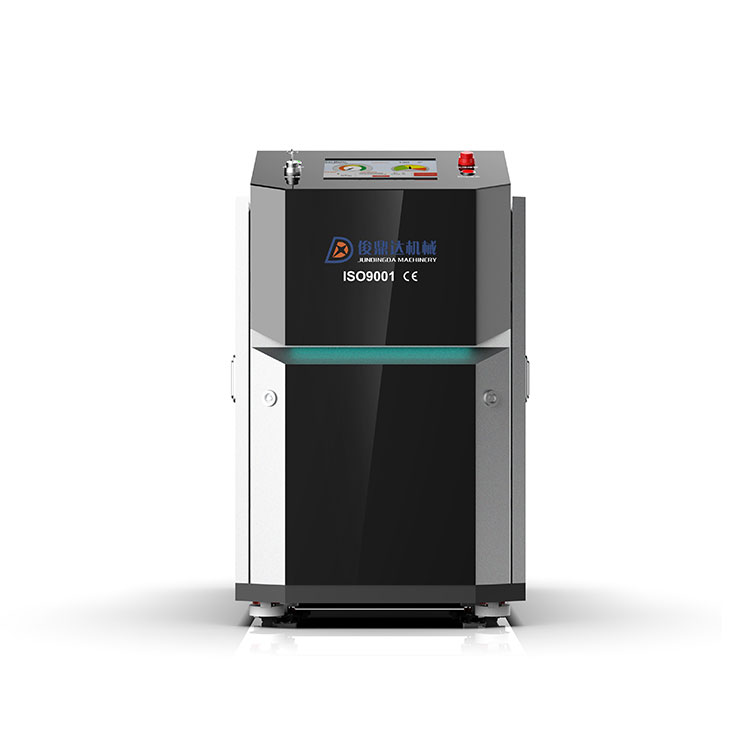

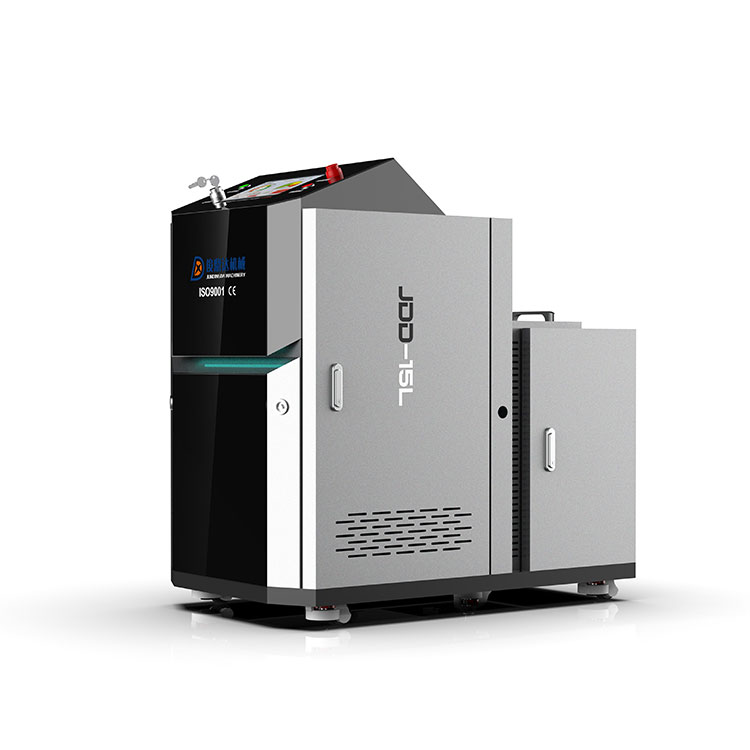

15L Intelligent Hot Melt Adhesive Machine with Dual Reflow, Compatible with 2 Hoses and 2 Guns, Featuring Xinje Touch Temperature Control System
This 15L intelligent hot melt adhesive machine is designed with a fully enclosed insulation structure, suitable for polyolefin, pressure-sensitive adhesives, and EVA hot melt adhesive applications. It features a reflow system and reverse suction design, ensuring efficient glue application. The machine is equipped with a Xinje touch temperature control system and can be connected externally to simulate analog signals or encoder for synchronized glue volume tracking. The MAC solenoid valve ensures quick and precise glue cutoff.
Technical Parameter |
Details |
Application Type |
Hot Melt Adhesive |
Glue Tank Capacity |
15L |
Glue Output Ports |
2 Routes |
Gear Metering Pump |
23.2cc1, Ruicheng Pump Industry |
Maximum Glue Supply |
12 KG/H (1 Set of Gear Pump) |
Melting Speed |
12 kg/h, Maximum Temperature 240°C |
Control Method |
Intelligent Temperature Control System (Xinje Operating System) |
Maximum Motor Rotation Speed |
70 rpm (400W Motor, 1 Set), Variable Frequency Speed Control Motor (Yuxin Motor) |
Power Supply |
AC 220V, 5.5 kW |
Melting Tank Dimensions |
260220450mm |
Speed Regulation Method |
Variable Frequency Speed Drive, Controlling Glue Pump Output |
Frequency Converter (Tai'an) |
750W, 1 Set, Includes Automatic Signal Interface for Production Line |
Reverse Suction Scraper Gun |
1 Set |
Glue Hose |
3 Meters, High-Temperature Teflon, Max Temperature 260°C |
This advanced hot melt adhesive machine is tailored for high-precision and efficient adhesive applications. Its dual reflow system and full insulation design maintain optimal performance, while the use of high-quality components, such as the MAC solenoid valve, ensures rapid and accurate glue control. The intelligent temperature control system and versatile compatibility with external signals make this machine a top choice for various industrial adhesive needs.
1, Xinjie or Siemens operating system, English and Chinese operation, automatic switching function, glue measuring hand/automatic tracking
2, the capacity is 20L, the melting speed is 16kg per hour, the working power supply is AC-220V, the power is 5.5kw, the upper and lower 2 layers are independently heated.
3, metering pump 2*5.4cc Sensor type k or pt100 (other metering pumps and sensors are available)
4, glue supply method: high precision metering pump glue supply, servo and frequency conversion drive optional, glue outlet 2-4, reflux 2-4
5, can connect 2-4 tubes 2-4 guns, (glue gun optional: manual glue gun, scraper gun, glue gun, spiral spray gun, fiber spray gun)
6, suitable for manual sealing box, express bag, envelope bag, paper bag, filter, material composite, sanitary products industry, medical industry, etc.
