This Hot Melt Dispensing Equipment is equipped with an intelligent PLC control system that can accurately adjust the temperature, dispensing speed and glue amount to adapt to different production requirements and material types. The efficient heating system and modular design of Hot Melt Dispensing Equipment make it easy to operate and maintain, while supporting quick adjustment and cleaning. Whether it is used for delicate dispensing operations or large-scale coating operations, the equipment can provide stable and reliable dispensing solutions to improve production efficiency and product quality.
15L Intelligent Hot Melt Glue Machine with Dual Reflow and External Connectivity for 2 Hoses and 2 Guns, Featuring Xinje Touch Temperature Control System
This 15L intelligent hot melt glue machine is designed to deliver high-performance adhesive applications with advanced features. It supports dual reflow, can connect externally to 2 hoses and 2 guns, and is equipped with a Xinje touch temperature control system. The machine also supports external analog or encoder synchronization for precise glue volume tracking.
Fully Enclosed Insulation Design: Ensures efficient temperature maintenance and is suitable for polyolefin, pressure-sensitive adhesives, and EVA hot melt adhesive spraying. Features a 25mm small fiber nozzle combination, with customizable non-standard spray plates (1-5 holes) for adjustable adhesive width.
High-Temperature Teflon Glue Hose: Rated for up to 260°C, providing durability and reliability in high-temperature applications.
Technical Parameter |
Details |
Application Type |
Hot Melt Adhesive |
Glue Tank Capacity |
15L |
Glue Output Ports |
2 Routes |
Gear Metering Pump |
23.2cc1, Ruicheng Pump Industry |
Maximum Glue Supply |
12 KG/H (1 Set of Gear Pump) |
Melting Speed |
12 kg/h, Maximum Temperature 240°C |
Control Method |
Intelligent Temperature Control System (Xinje Operating System) |
Maximum Motor Rotation Speed |
70 rpm (400W Motor, 1 Set), Variable Frequency Speed Control Motor (Yuxin Motor) |
Power Supply |
AC 220V, 5.5 kW |
Melting Tank Dimensions |
260220450mm |
Speed Regulation Method |
Variable Frequency Speed Drive, Controlling Glue Pump Output |
Frequency Converter (Tai'an) |
750W, 1 Set, Includes Automatic Signal Interface for Production Line |
Fiber Spray Gun (200mm) |
1 Set |
Glue Hose |
3 Meters, High-Temperature Teflon |
This machine is engineered for high efficiency and precision in adhesive applications, featuring a fully enclosed insulation design and versatile nozzle options. Its intelligent control system and high-temperature capabilities make it ideal for a range of industrial adhesive tasks.
Plastic bucket 600*500*1500mm

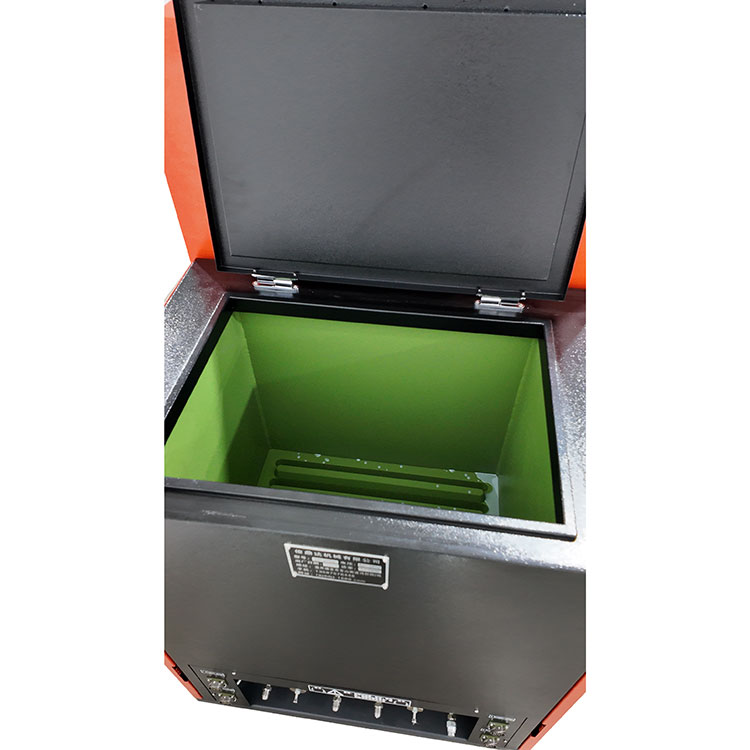

Heat the bottom, middle and top three layers
Reverse draw coating die head
Alloy coating die head

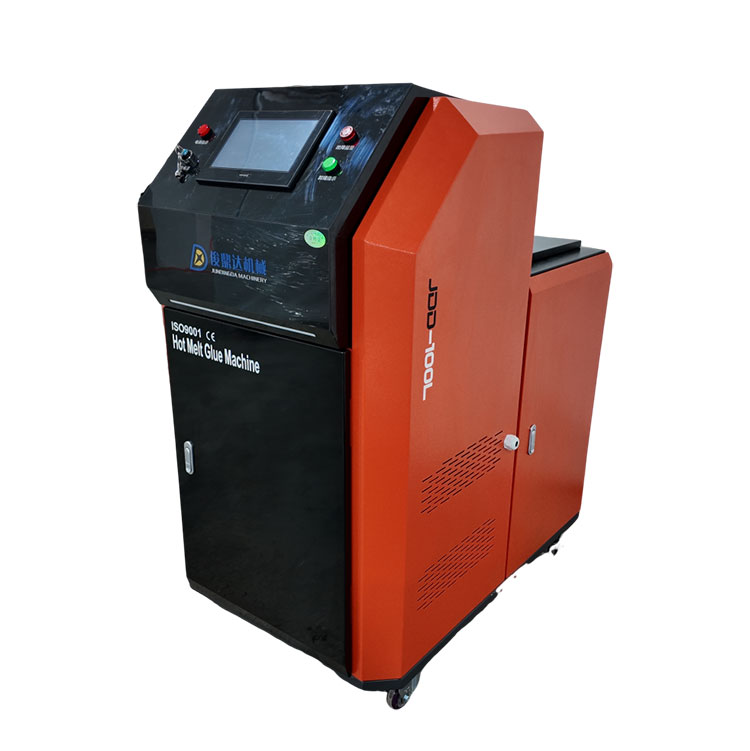

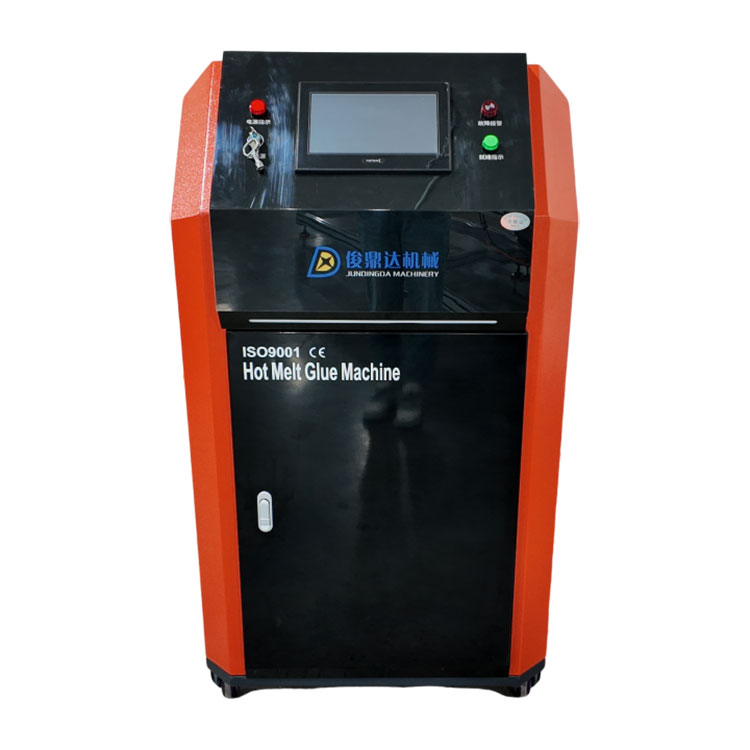

1, Xinjie or Siemens PLC operating system, English and Chinese operation, automatic switching function, automatic tracking of glue quantity

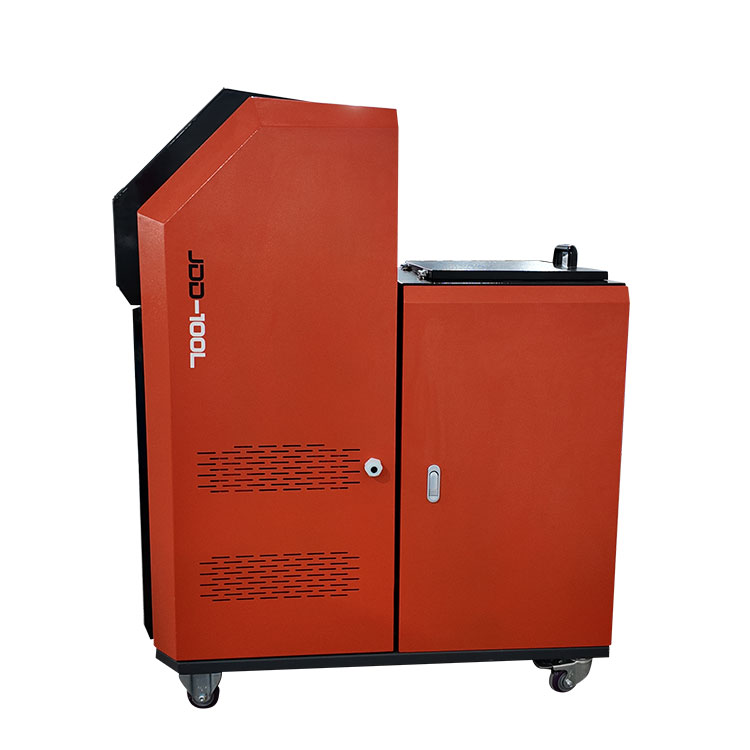

2, capacity 100L, melting speed 90kg per hour, working power AC380V 14.5kw, upper and lower 2 layers of independent heating.
3, 2 sets of metering pumps 20cc, 30cc, sensor type k or pt100 (other models of metering pumps and sensors are acceptable)

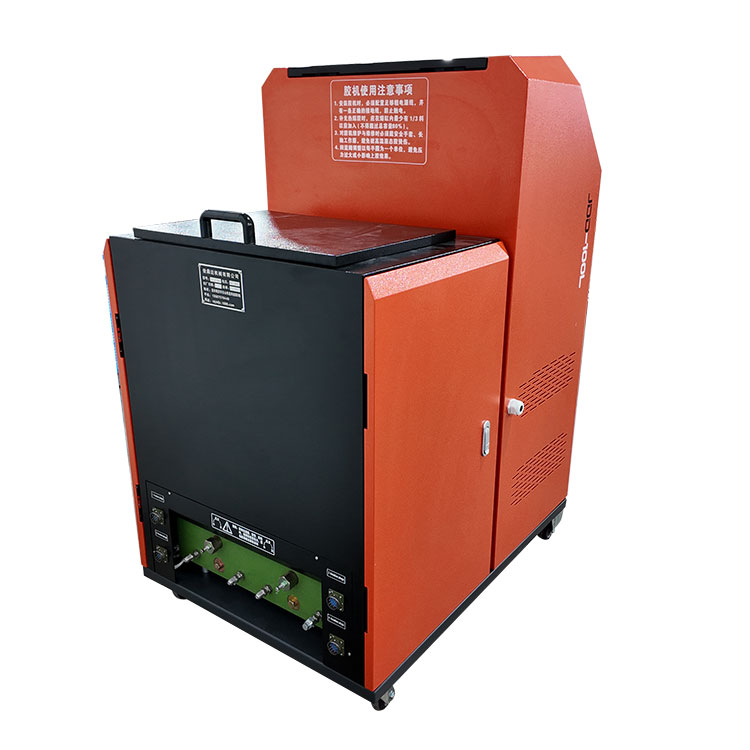

4, glue supply method: high precision metering pump glue supply, servo and frequency conversion drive optional, 6 channels of glue outlet, 6 channels of reflux
5, can be connected to 4 tubes and 4 guns, (glue gun optional: large reverse suction scraper gun, dispensing gun, spiral spray gun, fiber spray gun)
6, suitable for air filter, non-woven fabric, opp film, automotive interior and exterior decoration, hygiene products, label coating, medical industry and other products spraying adhesive compound.
