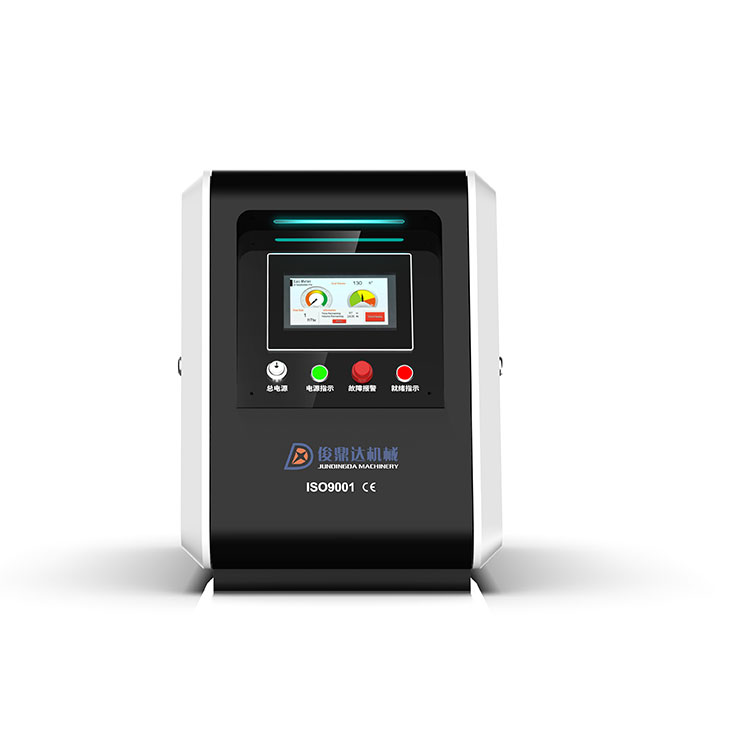

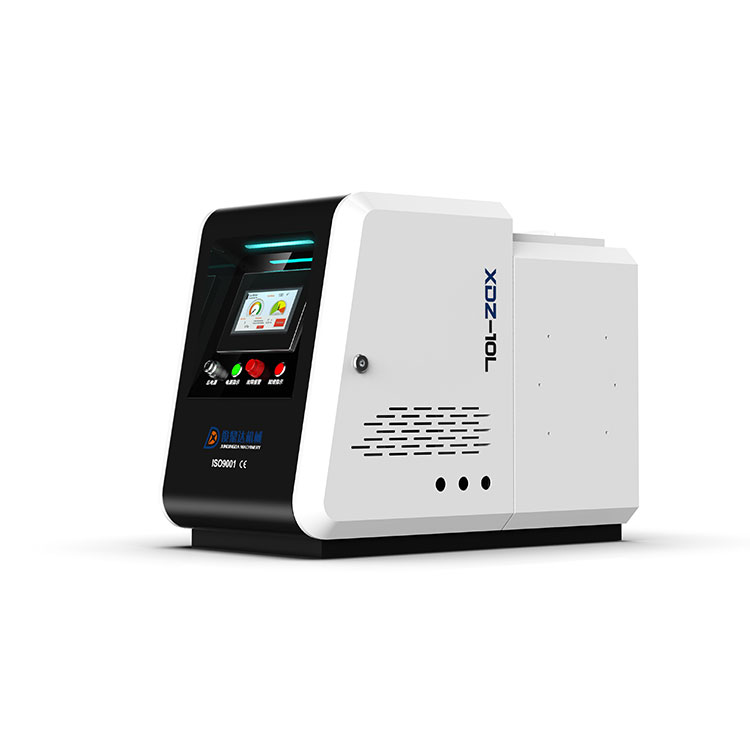

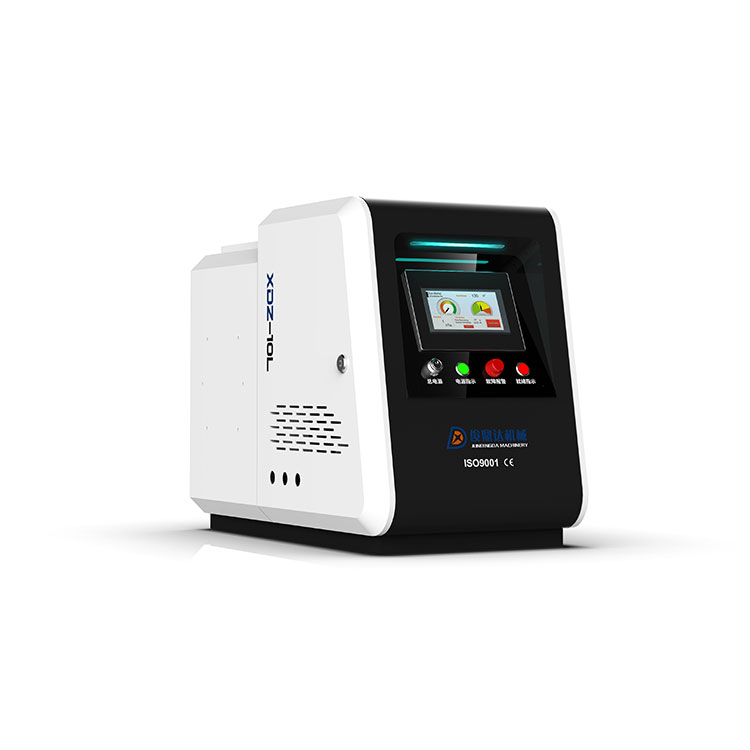

Foam Dispensing Hot Melt Glue Machine

Model:XD-Z10L

Jundingda Machinery Foam Dispensing Hot Melt Glue Machine is a precision hot melt glue dispensing equipment designed for foam material bonding. The machine is able to apply hot melt glue to foam materials in a precise manner, ensuring uniform bonding and strong bonding, and is widely used in industries such as furniture, packaging, automotive interiors and electronics. The equipment adopts advanced dispensing system and intelligent control technology, supports multiple modes and parameter adjustments, and is suitable for processing foam materials of various specifications and shapes.

Advanced hot melt glue dispensing machine from Jundingda Machinery is equipped with an efficient heating system and a PLC intelligent control panel. Users can easily set the temperature, coating speed and glue amount distribution to ensure high precision and consistency for each operation. The modular design of Foam Dispensing Hot Melt Glue Machine makes it easy to integrate into existing production lines and provides simple maintenance and the convenience of replacing accessories. It is an ideal choice for large-scale production and high-quality foam material processing.







High-Temperature Teflon Glue Hose, Maximum Temperature 260°C, 3M Reverse Pull Glue Gun, Fully Insulated Structure Design


Glue Machine Configuration:



The Main Technical Parameters:



Application Type

 Hot Melt Adhesive

Glue Tank Capacity

 10L, Fully Aluminum Alloy Processed, In-House Manufactured Glue Tank

Glue Output Port

 2 Routes

Gear Metering Pump

 18.0cc1, Ruicheng Pump Industry

Maximum Glue Supply

 28.8 KG/H (1 Set of Gear Pump)

Melting Speed

 8 kg/h, Maximum Temperature 260°C

Control Method

 Intelligent Temperature Control System (Yudian Temperature Control Operating System)

Maximum Motor Rotation Speed

 70 rpm (400W Motor, 1 Set) Variable Frequency Speed Control Motor, Yuxin Motor

Power Supply

 AC 180-240V, 4.0 kW

Melting Tank Dimensions

 260220400mm

Speed Regulation Method

 Variable Frequency Speed Drive, Controlling Glue Pump Output

Frequency Converter (Tai'an)

 750W, 1 Set, Includes Automatic Signal Interface for Production Line

Reverse Pull Gun

 1 Set

Glue Hose

 3 Meters, 1 Piece



Advantages and characteristics:



1, PLC Xinjie touch screen control system, English and Chinese operation, manual and automatic glue supply mode

2, capacity 10L, melting speed 8kg/h working power AC-220V, power 3.5kw

3, metering pump 1*8.0cc, sensor type k or pt100 (customized for special requirements)

4, glue supply method: high precision metering pump for glue, servo or frequency conversion drive is optional, 2 ways of glue outlet, 1 way of reflux

5, can connect 2 tubes 2 guns, (glue gun optional: manual glue gun, scraper gun, glue gun, spray gun)

6, suitable for manual sealing box, express bag, envelope bag, paper bag, filter, shower cap and other industries


Foam Dispensing Hot Melt Glue Machine workshop



Foam Dispensing Hot Melt Glue Machine Qualification Certificate
