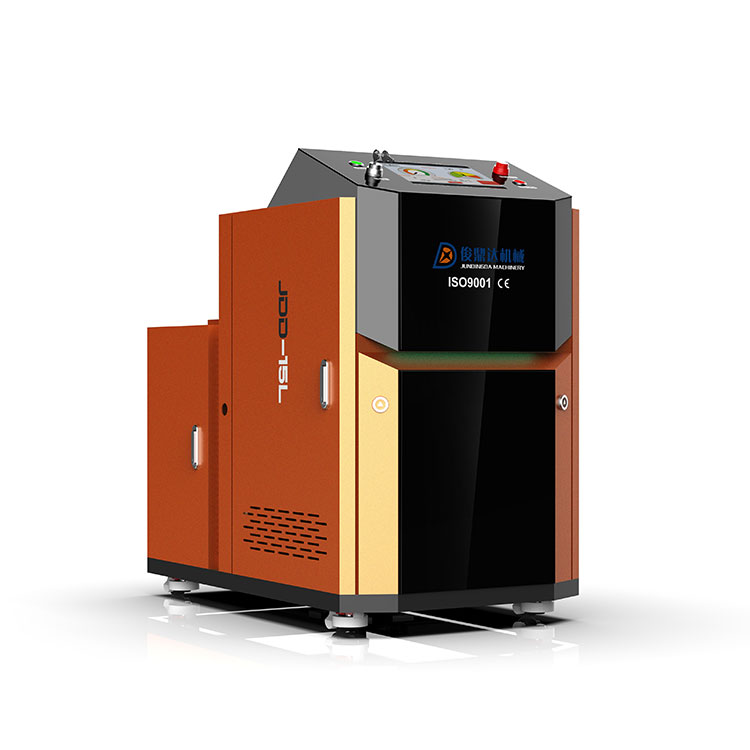

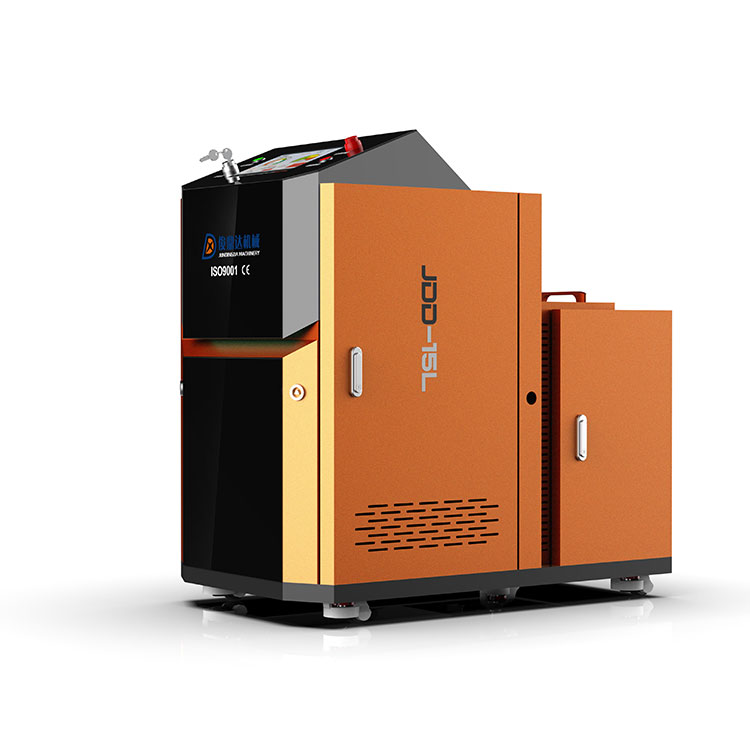

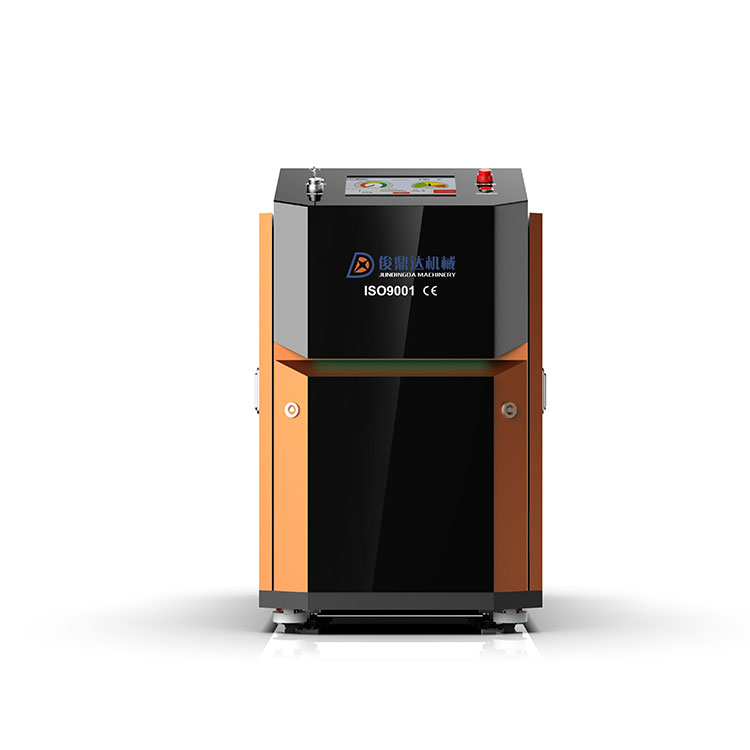

Hot Melt Glue Coating Machine

Model:XD-Z15L

Jundingda Machinery advanced Hot Melt Glue Coating Machine is an efficient hot melt adhesive coating equipment, which is widely used in packaging, label, non-woven fabrics, textiles, paper products, wood and automotive interior industries. The equipment adopts advanced hot melt adhesive coating technology. Through the precise coating head and intelligent control system, it can evenly coat the hot melt adhesive on the surface of various substrates to ensure the bonding strength and stability. Its efficient heating system and precise control function can meet the production lines with different thickness, width and speed requirements, and improve the overall production efficiency and product quality.

Jundingda Machinery advanced Hot Melt Glue Coating Machine is equipped with an intelligent PLC control system, which can accurately adjust the coating speed, temperature and glue amount to meet different production needs. The modular design of Hot Melt Glue Coating Machine is easy to maintain and operate, easy to integrate into existing production lines, and supports fast replacement of coating molds and adjustment of coating width. Whether it is used for large-scale production or small batch customization, the equipment can provide a stable coating solution and is an ideal choice for improving productivity and product quality in modern manufacturing.



Advantages and characteristics:



1, Xinjie or Siemens operating system (Siemens operating system is optional), English and Chinese operation, automatic switching function, glue measuring hand/automatic tracking

2, the capacity is 15L, the melting speed is 12kg per hour, the working power supply is AC-220V, the power is 4.5kw

3, metering pump 2*5.4cc*1 set, sensor type k or pt100 (customized for special requirements)

4, glue supply method: high precision metering pump glue supply, servo and frequency conversion drive optional, glue outlet 2-4, reflux 2-4

5, can connect 2-4 tubes 2-4 guns, (glue gun optional: manual glue gun, scraper gun, glue gun, spray gun)

6, suitable for manual sealing, express bag, envelope bag, paper bag, filter, material composite, sanitary products industry



Drawer-Type Structure Design with Xinje PLC Operating System, Dual Pump Glue Output, Capable of Supplying 4 Glue Guns Simultaneously

This hot melt adhesive machine is engineered with a drawer-style structure and equipped with the Xinje PLC operating system, allowing for precise and reliable operation. It features dual-layer pumps for adhesive output, capable of supporting up to four glue guns simultaneously. The manual constant-volume glue gun and high-temperature resistant hose provide consistent and efficient glue application at high temperatures of up to 220°C.



Glue Machine Configuration:


Technical Parameter

Details

Application Type

Hot Melt Adhesive

Glue Tank Capacity

15L

Glue Output Port

2 Routes

Gear Metering Pump

25.4cc1, Tianjin Ruicheng Pump Industry

Maximum Glue Supply

19.8 KG/H (1 Set of Gear Pump)

Melting Speed

12 kg/h, Maximum Temperature 240°C

Control Method

PLC Xinje Operating System

Maximum Motor Rotation Speed

70 rpm (400W Motor, 1 Set), Variable Frequency Speed Control Motor (Yuxin Motor, Taiwan)

Power Supply

AC 220V, 5.5 kW

Melting Tank Dimensions

260220450mm

Speed Regulation Method

Variable Frequency Speed Drive, Controlling Glue Pump Output

Frequency Converter (Tai'an)

750W, 1 Set, Includes Automatic Signal Interface for Production Line

Manual Glue Gun

2 Sets

Glue Hose

3 Meters and 2.5 Meters, Made of DuPont Material, USA

This system is designed for high efficiency and precision in hot melt adhesive applications. Its dual pump configuration ensures a stable supply of glue across multiple guns, while the advanced PLC system provides reliable control. The use of premium materials, such as DuPont hoses, enhances durability and performance, making it an ideal choice for demanding industrial environments.


Hot Melt Glue Coating Machine workshop



Hot Melt Glue Coating Machine Qualification Certificate
