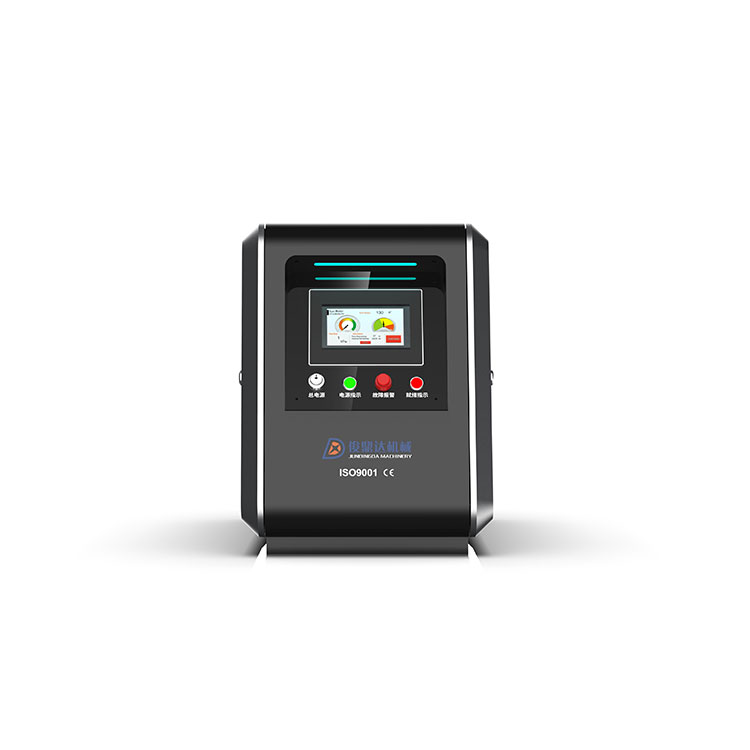

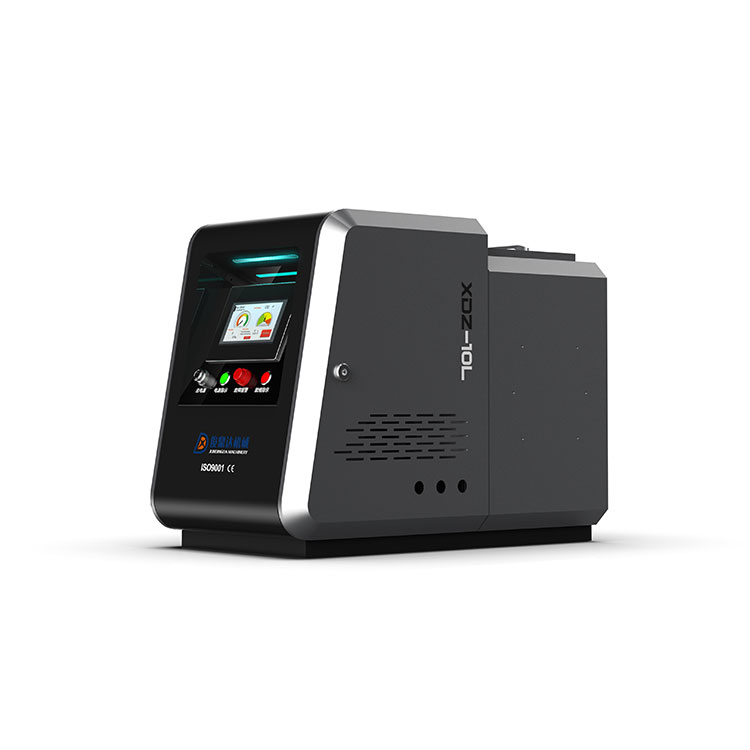

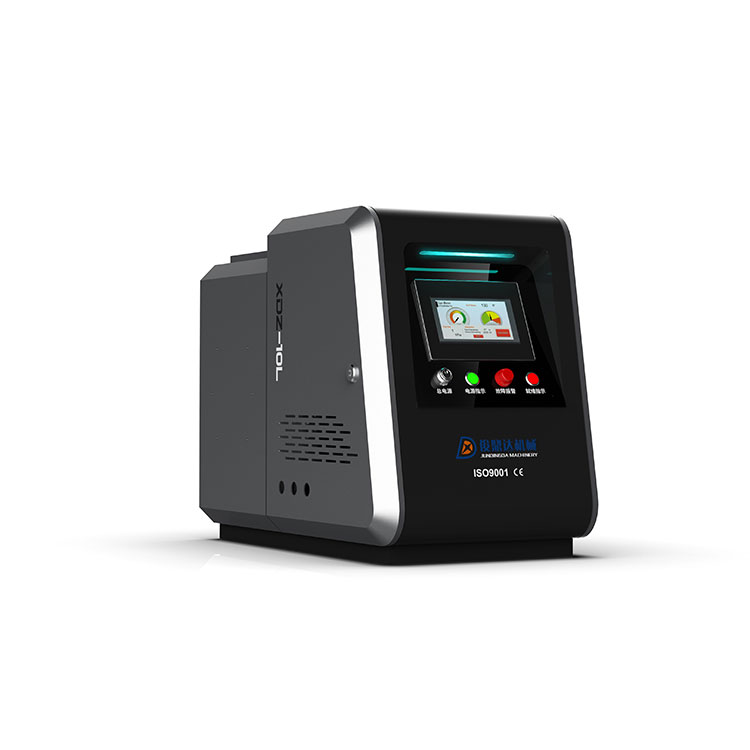

Hot Melt Adhesive Machine

Model:XD-Z10L

Jundingda Machinery Hot Melt Adhesive Machine is a highly efficient bonding machine designed for multi-industry applications, suitable for packaging, furniture manufacturing, automotive interiors, textiles and building materials. The machine can evenly apply adhesive to various substrate surfaces through a precise hot melt adhesive coating system, ensuring a strong and lasting bonding effect. Equipped with advanced heating and intelligent control technology, this machine can greatly improve production efficiency and ensure high quality and consistency of products, suitable for high-demand operations on large-scale production lines.

Jundingda Machinery Hot Melt Adhesive Machine uses an intelligent PLC control system, allowing users to accurately adjust temperature, pressure and glue volume to ensure high precision and consistency for each operation. The modular design of the Hot Melt Adhesive Machine is not only easy to operate, but also convenient for daily maintenance and quick adjustment of production settings. Whether it is the fine bonding of small workpieces or large-area coating operations, this machine can provide a stable and reliable solution, making it an ideal choice for all types of manufacturing industries.





High-Temperature Teflon Glue Hose, Maximum Temperature 260°C, 3M Reverse Pull Glue Gun, Fully Insulated Structure Design



Glue Machine Configuration:



Below are the main technical parameters of the glue machine, designed for high efficiency and precise control in hot melt adhesive applications. This machine features a fully insulated structure with a high-temperature Teflon glue hose and advanced components to ensure reliable performance at temperatures up to 260°C.



Technical Parameter Details



Application Type

Hot Melt Adhesive

Glue Tank Capacity

10L, Fully Aluminum Alloy Processed, In-House Manufactured Glue Tank

Glue Output Port

2 Routes

Gear Metering Pump

18.0cc1, Ruicheng Pump Industry

Maximum Glue Supply

28.8 KG/H (1 Set of Gear Pump)

Melting Speed

8 kg/h, Maximum Temperature 260°C

Control Method

Intelligent Temperature Control System (Yudian Temperature Control Operating System)

Maximum Motor Rotation Speed

70 rpm (400W Motor, 1 Set), Variable Frequency Speed Control Motor (Yuxin Motor)

Power Supply

AC 180-240V, 4.0 kW

Melting Tank Dimensions

260220400mm

Speed Regulation Method

Variable Frequency Speed Drive, Controlling Glue Pump Output

Frequency Converter (Tai'an)

750W, 1 Set, Includes Automatic Signal Interface for Production Line

Reverse Pull Gun

1 Set

Glue Hose

3 Meters, 1 Piece



This setup provides a robust and efficient solution for handling hot melt adhesives with precise temperature control and reliable glue output. The fully insulated design and high-quality components ensure optimal performance and safety during operation.



Hot Melt Adhesive Machine workshop



Hot Melt Adhesive Machine Qualification Certificate
