30l High Hot Melt Glue Machine
  • 30l High Hot Melt Glue Machine30l High Hot Melt Glue Machine
  • 30l High Hot Melt Glue Machine30l High Hot Melt Glue Machine
  • 30l High Hot Melt Glue Machine30l High Hot Melt Glue Machine
  • 30l High Hot Melt Glue Machine30l High Hot Melt Glue Machine
  • 30l High Hot Melt Glue Machine30l High Hot Melt Glue Machine
  • 30l High Hot Melt Glue Machine30l High Hot Melt Glue Machine

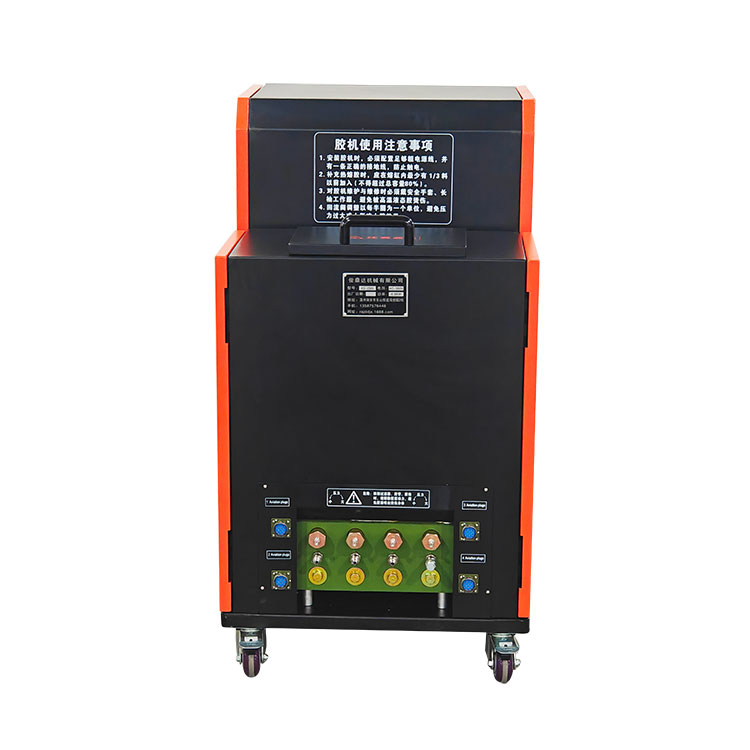

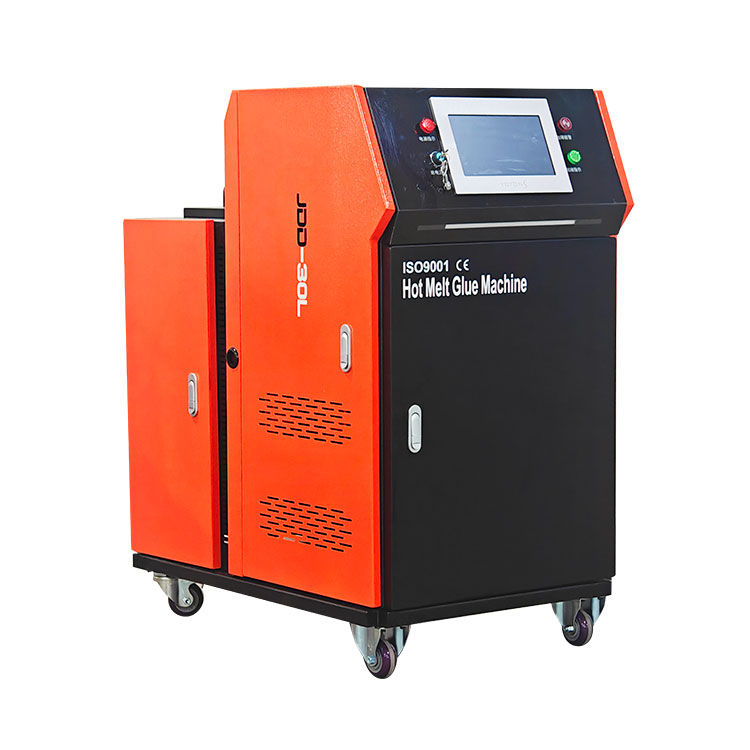

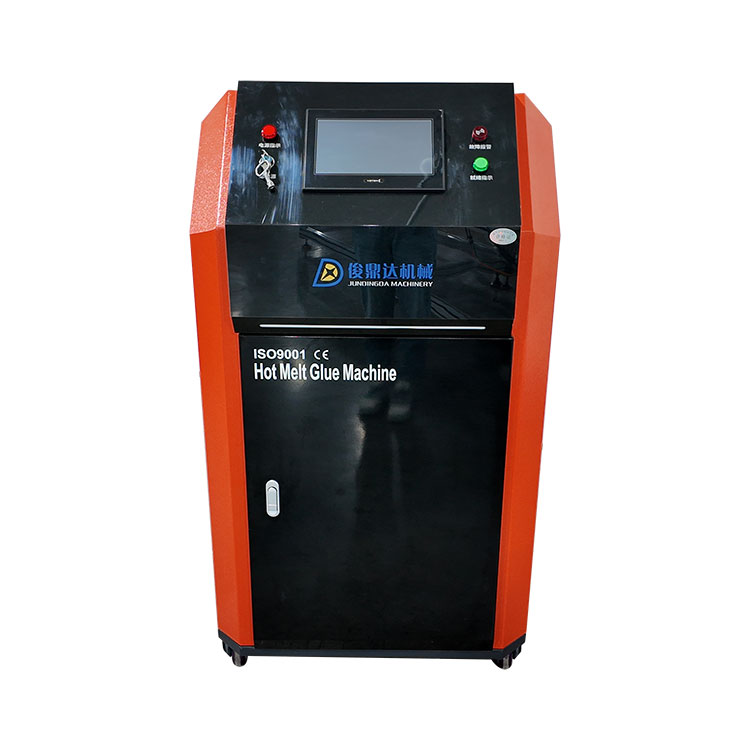

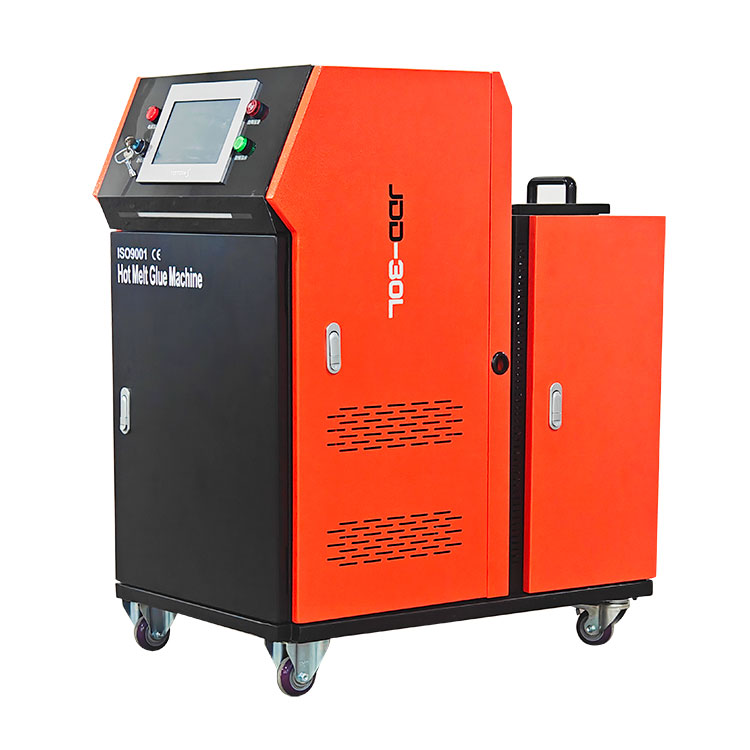

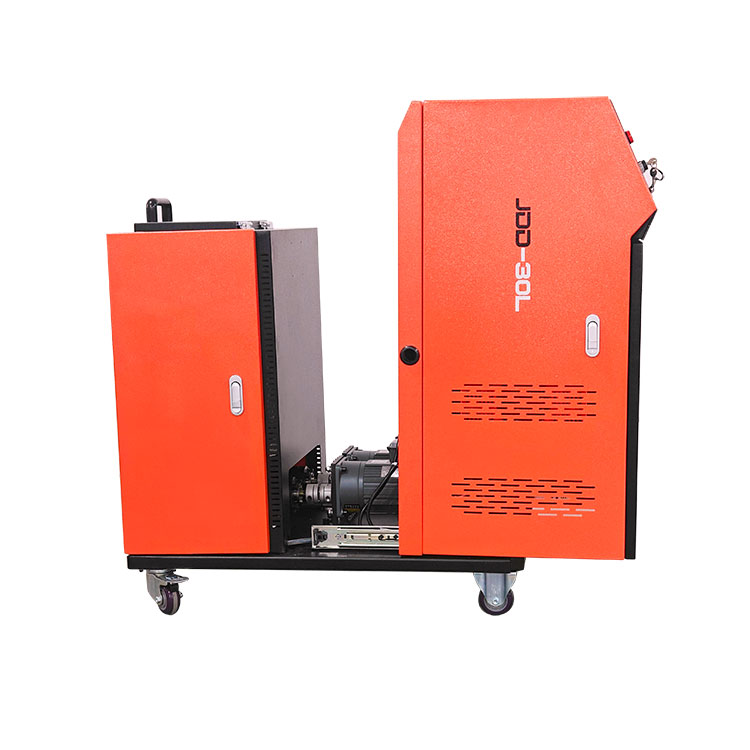

30l High Hot Melt Glue Machine

The Jundingda Machinery 30L High Hot Melt Glue Machine is a high-efficiency hot melt glue machine with a capacity of 30 liters, specially designed for industrial applications such as packaging, furniture manufacturing, labelling, textiles and automotive. The equipment has a high-performance heating and melting system that can quickly and evenly apply hot melt adhesive to various substrates to ensure bonding strength and durability. Through the advanced control system and large-capacity adhesive box design, this equipment can provide stable adhesive effects in high-intensity production environments and significantly improve production efficiency.

The Jundingda Machinery is equipped with an intelligent PLC control system, which can accurately adjust the temperature, glue dispensing speed and glue output to ensure the consistency and efficiency of each operation. The modular design of the 30L High Hot Melt Glue Machine facilitates operation, maintenance and cleaning, while supporting quick replacement of glue materials and adjustment of parameters to suit different production needs. Whether used for high-volume production or complex custom bonding tasks, this equipment provides reliable solutions and is ideal in all types of industrial manufacturing.

The easy-to-clean design allows for quick changeovers to different adhesive substrates with minimal downtime.



Available with a single gear pump or 2 gear pumps

Extremely short changeover times

Convenient, simple operation

Energy-saving design


Jundingda Machinery 30l High Hot Melt Glue Machine advantage:


1, Xinjie or Siemens PLC operating system, English and Chinese operation, automatic switching function, automatic tracking of glue quantity

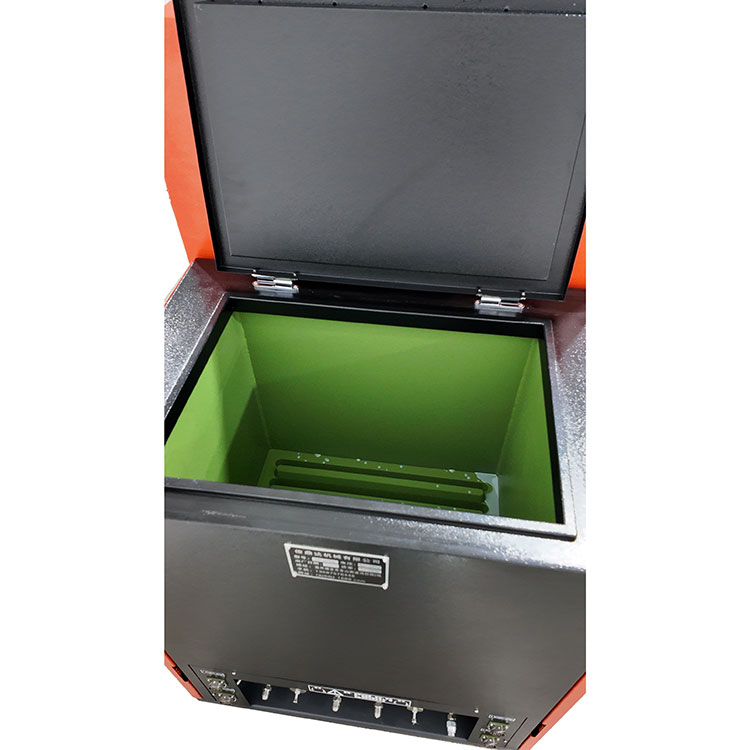

2, the capacity is 30L, the melting speed is 26kg per hour, the working power supply is AC-220V or AC380V power is 7.5kw, the upper and lower 2 layers are independently heated.

3, metering pump 2*5.4cc*2 sets, sensor type k or pt100 (other types of metering pump and sensor are acceptable)

4, glue supply method: high precision metering pump glue supply, servo and frequency conversion drive optional, glue outlet 2-4, reflux 2-4

5, can connect 2-4 tubes 2-4 guns, (glue gun optional: manual glue gun, scraper gun, glue gun, spiral spray gun, fiber spray gun)

6, suitable for manual sealing packaging, paper bags, filters, material composite, sanitary products industry, medical industry, etc.


30l High Hot Melt Glue Machine workshop



30l High Hot Melt Glue Machine Qualification Certificate
