PUR Spray Laminating Machine
  • PUR Spray Laminating MachinePUR Spray Laminating Machine

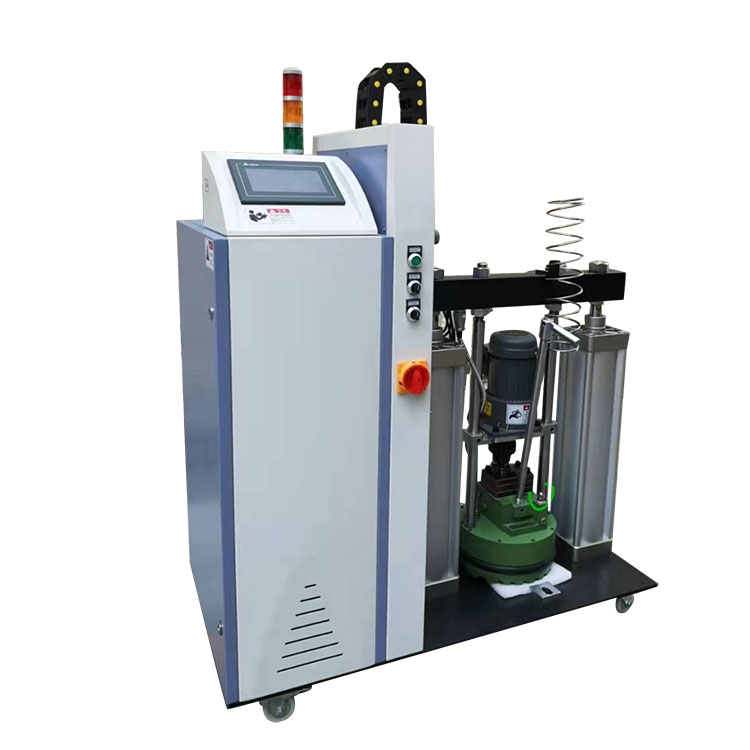

PUR Spray Laminating Machine

Jundingda Machinery PUR Spray Laminating Machine is a highly efficient equipment designed for PUR (polyurethane) adhesive spraying and laminating applications. The machine uses advanced spraying technology and automated control systems to accurately and evenly apply PUR adhesives to various substrate surfaces, and is widely used in furniture, automotive interiors, packaging and construction industries. It not only improves production efficiency, but also ensures the uniformity and strength of the adhesive layer, and is suitable for large-scale production and high-quality applications.

Jundingda Machinery PUR Spray Laminating Machine is a high-performance equipment specially designed for PUR adhesive spraying and laminating. Through a precise spraying system and intelligent control technology, the machine achieves efficient and uniform adhesive application, which can meet various production needs, thereby increasing the added value and market competitiveness of the product.



Name: PUR Hot Melt Glue Machine

Model: XD-PUR5 Gallon

High-Temperature Teflon Feed Tube

Manual Glue Gun

Machine Configuration:


Main Technical Parameters


Application Type

 Suitable for PUR hot melt adhesive spraying.

Model

 XD-PUR5 Gallon

Glue Outlet

 2 channels

Gear Pump

 12cc (1 set)

Maximum Glue Output

 30KG/H (single gear pump)

Melted Glue Speed

 40kg/h (2-layer heating)

Control Method

 PLC intelligent touch temperature control system with 6 temperature control zones

Maximum Motor Speed

 70rpm (400W motor, 1 set)

Power Supply

 3-phase AC-380V, 7.5kw

Melting Cylinder Size

 5-gallon glue bucket

Speed Regulation

 Frequency conversion speed control for glue pump

Frequency Converter (Tai'an)

 700W, 1 set, including automatic signal interface for the production line

Glue Tubes

 4 meters, 2 pieces

Manual Gun

 1 set


Working Principle:


1. PUR hot melt adhesive is melted in the melting cylinder and then transported through the glue tubes to the glue gun under constant pressure. The glue flow is controlled by pulling the trigger on the manual gun.



PUR Spray Laminating Machine workshop



PUR Spray Laminating Machine Qualification Certificate
