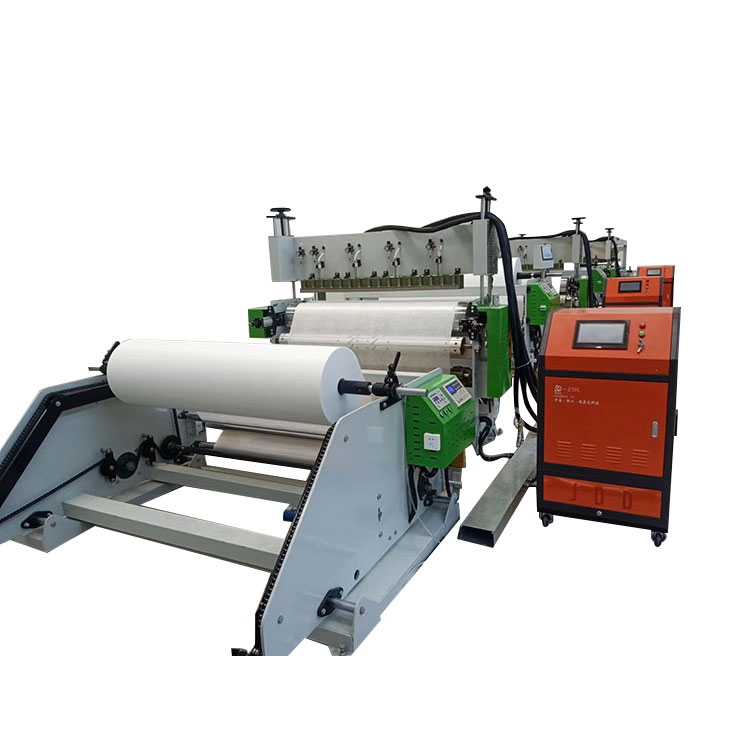

Hot Melt Coating Machine

Hot Melt Coating Machine Overview

Jundingda Machinery High quality Hot Melt Coating Machine is an advanced equipment designed for efficient hot melt adhesive coating. It achieves uniform coating of various substrates through an optimized hot melt adhesive application system to meet the needs of different industrial production. The machine not only improves production efficiency, but also ensures coating quality, and is suitable for various large-scale production scenarios.Laminating machine operation instructions

The material is passed through the air shaft and placed on the loading hook. Press the loading and unloading start button to drag the material to the unwinding buckle position and fix it. When the machine is stopped, all materials are passed through the transition wheel to the composite glue spraying position and then pulled back to the rewinding position. Straighten the material, correct the deviation and align it, and adjust the tension (see the manual for details on deviation adjustment and tension adjustment).

Laminating part instructions

1. Turn on the composite roll switch and pass the two layers of material through the composite device in turn.

2. Adjust the gap between the composite rolls (depending on the thickness of the material)

3. After all the materials are passed through and aligned, adjust the gap between the glue gun and the composite roll

4. Turn on the air source and adjust the compressed air of the solenoid valve to 0.6mpa

5. Adjust the spray glue atomization pressure to 0.2mpa

6. Turn on the solenoid valve switch to achieve glue spraying

Slitting System:

1. Adjust the distance between the slitting knives according to the material width

2. Quickly connect the required cutter to the corresponding air source pressure to achieve synchronous online slitting

3. The pressure of the slitting knife should not be too large, just adjust it to about 0.2mpa (it can effectively extend the service life of the cutter and the bottom roller)

Slitting System:

1. Put the reeling paper tube on the reeling shaft, apply air pressure, and stick double-sided tape

2. Clamp the reeling shaft on the backrest reeling mechanism, open the reeling switch valve, and press the reeling shaft against the reeling roller. Realize synchronous reeling.

1. The whole machine operating system sets the parameters between each reeling roller, small pressure roller, and composite roller.

2. One-key start, press the acceleration and deceleration button to achieve one-key start.
