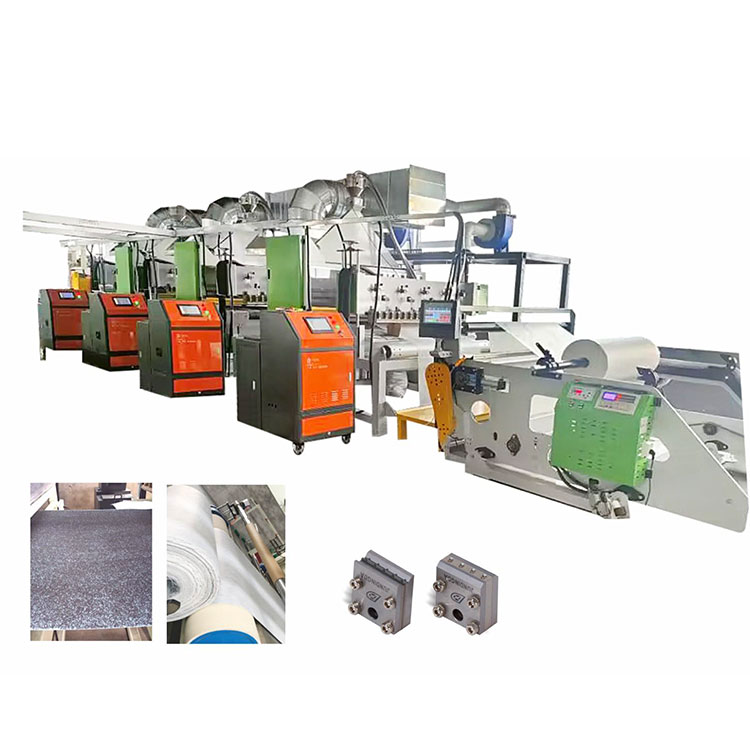

This Jundingda Machinery Carbon Fabric Melt Blown Laminating Machine adopts an intelligent control system that supports precise adjustment of temperature, pressure and speed to ensure uniform bonding of each layer of material. Its efficient lamination capacity and stable performance not only improve production efficiency, but also improve the quality and consistency of the final product. Whether it is high-strength carbon fiber fabric or fine meltblown cloth, this equipment can provide the best lamination solution, optimize the production process, and meet different industrial needs.
Carbon Fabric Melt Blown Laminating Machine integrates 3 carbon spreading and 4 glue spraying composite devices in one, and each mechanism is independently adjustable. After unwinding and deviation correction, the material enters the No. 1 glue spraying system for glue spraying, No. 1 carbon spreading (to make the carbon powder adhere to the material, 2 glue spraying carbon, 3 glue spraying, 3 carbon spreading, 4 glue spraying and upper material composite flat pressing, slitting, and enter the friction station for winding.
1: Production speed and glue spraying amount are synchronously controlled
2: Unwinding tension and production speed are automatically adjusted (servo active unwinding, automatically synchronized with speed) (brand Mitsubishi)
3: The upper and lower materials use a photoelectric servo deviation correction system. Ensure that the material is neat and beautiful
4: The winding system uses servo synchronous winding. Ensure that the product diameter and tension are uniform. (Brand Mitsubishi)
5: Carbon Fabric Melt Blown Laminating The machine has a set meter counting function (when the product reaches the set meter number, it will automatically stop and alarm to remind)
6: The spray system gas circuit has a new gas circuit heating plate, which is suitable for high-temperature glue spraying. (Working air pressure 5mpa, spray pressure 1-2mpa, spray plate adopts 10 pieces of multi-gas circuit control, and imported nozzles are used)
7: The melting cylinder is treated with high-temperature Teflon and uses 2 layers of heating. (To ensure the melting speed) Primary filtration before the pump and filtration through the overall filter after the pump to reduce the impact of impurities in the glue on the spraying.
8: The amount of glue spraying is automatically controlled by PLC, and the amount of glue changes automatically with the speed of the main machine. (The signal acquisition is connected to the main machine through the encoder, and the rotary pulse signal is processed by PLC to control the inverter.
9: The details are as follows: a: a set of composite carbon spreading machine 1800mm, b: 4 sets of hot melt glue machine XD-Z50L, c: 4 sets of small fiber spray guns 1600mm.
1: The total price of the composite spraying carbon line is RMB 1.65 million including tax. (including 13% tax)
2. Payment method: 40% deposit, 55% upon delivery, and the remaining 5% as a deposit to be paid one year after the equipment is commissioned.
3. 50 spare nozzles and 20 filters
3. Delivery time is 120 working days from the date of deposit receipt after signing the contract
1. The transmission adopts a full servo control system
2. The tension adopts servo automatic control
3. The spray gun adds a protective plate to reduce dust
4. The winding mechanism is optimized and has full automatic roll change
