Multi-layer Hot Melt Glue Spray Laminating Machine
  • Multi-layer Hot Melt Glue Spray Laminating MachineMulti-layer Hot Melt Glue Spray Laminating Machine

Multi-layer Hot Melt Glue Spray Laminating Machine

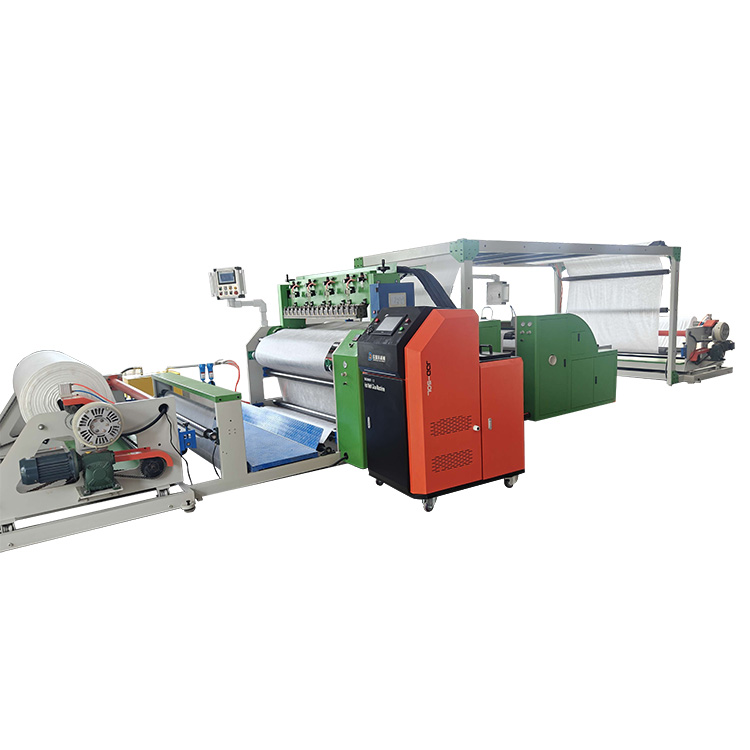

Model:XD-GY1600mm

Multi-Layer Hot Melt Glue Spray Laminating Machine is an efficient multi-layer hot melt glue spray coating equipment designed for complex lamination processes. The machine can achieve uniform and stable lamination effects on various substrates through precise spraying system and multi-layer hot melt glue application. It is widely used in furniture, packaging, automotive interiors and building materials, and is suitable for large-scale production and high-quality manufacturing environments.


The working principle of the Multi-layer Hot Melt Glue Spray Laminating Machine is as follows:


After the first roll of non-woven fabric is sprayed with glue, it enters the conveyor belt through the transition wheel and is bonded with the sound insulation cotton. After auxiliary pressing, it cannot be composited with the second roll of non-woven fabric after spraying glue. After the second conveyor belt output pressure feeding and slitting, it enters the single-arm surface friction winding system through cross cutting. When the set number of meters is reached, the cross cutting is automatically cut off.



The specific configuration is as follows:


1. 2 sets of unwinding systems (1 set for each of upper and lower non-woven fabrics), maximum unwinding diameter 1000mm

2. 4 unwinding shafts (hollow stainless steel pipe φ40mm*2000mm)

3. 2 sets of PVC conveyor belts 1800*2000mm

4. 1 set of composite rollers, 1 each of upper silicone rubber and lower steel roller Ø290mm*1800mm

5. Pressing Ø220mm*1800mm upper silicone and lower steel rollers

6. 5 sets of pneumatic slitting knives, 1 Ø60MM bearing steel hard roller

7. 1 set of electric cross-cutting device, 1.8 meters long, can cross-cut products below 1700mm

8. 1 roll-up system Ø400*1800mm rubber-coated roller (electromagnetic clutch + frequency conversion linkage)

9. The whole electrical machine adopts Xinjie PLC plus frequency conversion control, and the transmission mechanism is gear chain

10. The design speed is 20 meters, and the speed is adjusted according to the actual production line

The above products are three-layer composite machines (effective 1600mm 1 set, all roller surfaces 1800mm)
