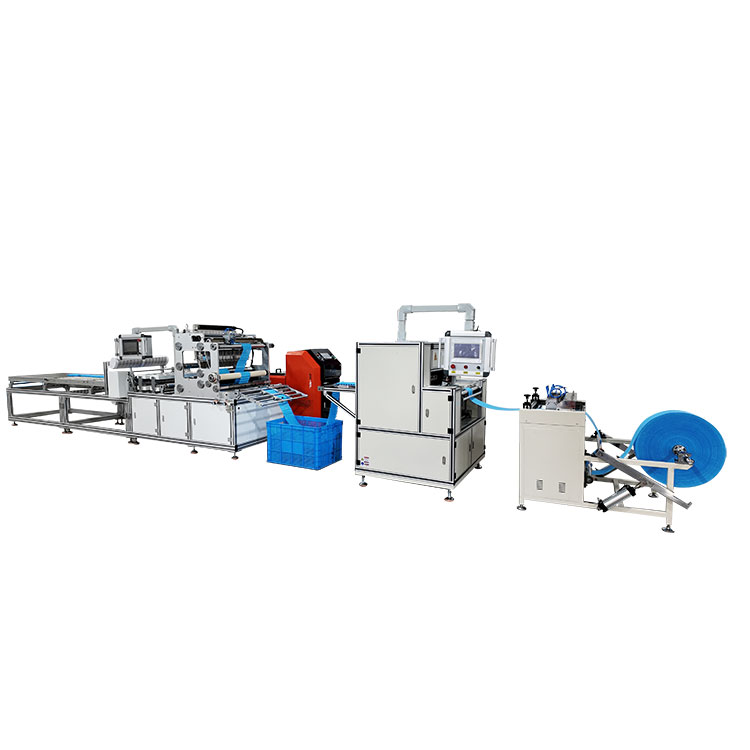

Jundingda is a specialized manufacturer of high-precision Fully Automatic PP Folding Gluing Machine, designed to meet diverse industrial needs. Their machines, such as the **55-800-S Paper Folding Machine**, utilize an alternating upper and lower knife mechanism for pleating, with computerized adjustments ensuring accuracy across various pleating heights. These machines also feature automatic functions such as dot counting, pleating, and pre-heating/forming processes, making them ideal for applications like filter paper processing. Jundingda’s equipment is known for its reliable performance, smooth operation, and precise output, supported by advanced technologies like Siemens PLC and Airtac components.
Zero drip glue gun
|
XD-Z50L Gluing machine
|
There are 21 rubber line valve bodies, about one single-head valve body, and the double-head valve body is used in the middle, and the double-head valve body spacing is 7.1mm. Produce 20 glue thread 32.1 products at a time
|
Main Technical Parameters |
Details |
|
Application Type |
Hot Melt Adhesive |
|
Melt Tank Capacity |
50L |
|
Glue Outlet & Return |
4-way, 4 return flow |
|
Metering Pump |
2 x 5.4CC |
|
Max Glue Supply Rate |
43KG/H (1 set of gear pump) |
|
Melt Speed |
45kg/h |
|
Max Temperature |
240°C |
|
Control System |
Intelligent Temperature Control System |
|
Power Supply |
AC-380V 10.5kW |
|
Max Motor Speed |
70rpm (2 sets of 400W motors) |
|
Speed Control |
Frequency Conversion, Speed-Controlled Motor (Yuxin Motor) |
|
Melt Tank Dimensions |
520 x 260 x 1050mm |
|
Speed Adjustment Method |
Frequency Conversion, Glue Pump Driven and Controlled |
|
Frequency Converter (Tai'an) |
750W, 1 set, with automatic signal interface for assembly line |
|
Glue Hoses |
2 hoses |
|
Specification |
Details |
|
Max Product Width |
700mm |
|
Adjustable Pleating Height Range |
5-65mm |
|
Pleating Speed |
0-160 pleats/min, adjustable |
|
Power Supply |
380V / 50Hz |
|
Motor Power |
6KW |
|
Pre-heater Power |
6KW |
|
Heating Temperature Range |
Normal temperature to 250°C, upper and lower heating for origami feed |
|
Working Air Pressure |
0.6MPa |
|
Dimensions (L x W x H) |
3500 x 1600 x 1700mm |
|
Weight |
1300kg |
· Low-voltage Electrical Components: Schneider
· Servo Motor: Siemens
· PLC: Siemens
· Touch Screen: Siemens
· Cylinders: Airtac
· Linear Guide Rail: Airtac
