Air Filter Gluing Machine
  • Air Filter Gluing MachineAir Filter Gluing Machine

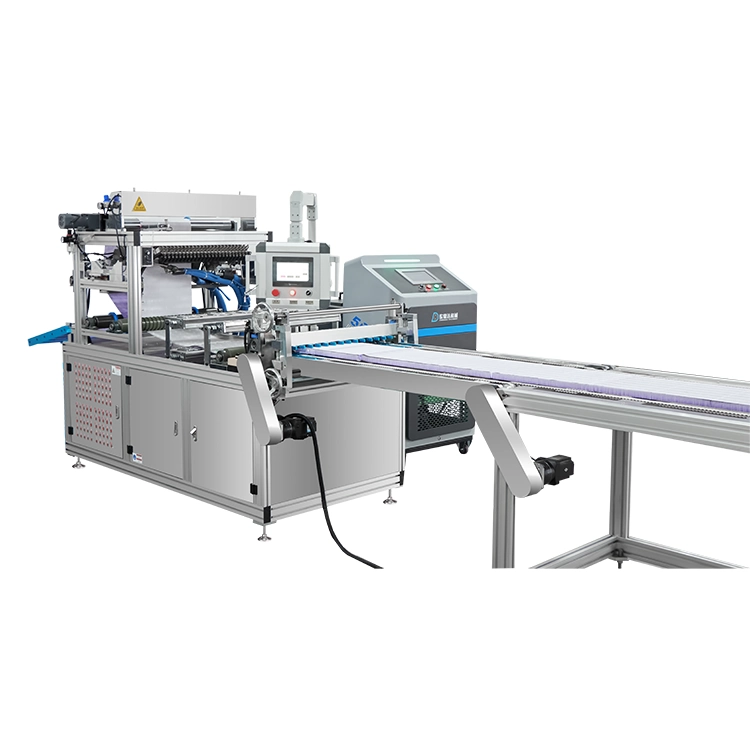

Air Filter Gluing Machine

Jundingda a professional factory, specializing the Air Filter Gluing Machine,which is a specialized device designed for the precise application of adhesive in the production of air filters. This machine is adaptable to various production specifications, enabling it to handle different filter sizes and shapes. It features a high-speed melting system with servo-controlled glue application, allowing for precise adjustments to the glue size for optimal bonding. The machine is known for its high production efficiency and superior product quality, making it an essential tool for manufacturing durable and effective air filters.

The Jundingda advanced Air Filter Gluing Machine has a modern monitoring system, which makes the filter material not easy to be pulled off or fall to the ground during transportation; the whole machine is driven by a servo motor, which makes the whole machine drive smoothly, thus ensuring the accuracy of product size; the traction roller and the creasing roller are driven by a servo motor and the speed between the two is set at a certain ratio, which can realize the infinitely adjustable folding height without replacing the creasing roller, improving production efficiency; the operating system adopts a touch screen interface, making the operation intuitive and simple; the production line has the advantages of automatic feeding, compact and reasonable structure, simple operation and convenient adjustment, stable transmission, infinitely adjustable folding height, automatic gluing and breaking, and precise and flat product size. It is the preferred equipment for filter manufacturers to produce filter materials such as glass fiber without partitions and high-efficiency air filters.



Air Filter Gluing Machine Installation Instructions:


1. Location Preparation:

  - Position the machine in an appropriate workplace or a designated spot on the filter assembly production line.

  - Mark the center line for installation based on the chosen location.


2. Machine Placement:

  - Remove the packaging box and dust cover.

  - Use a forklift to place the machine in its fixed position or the designated location on the production line. Ensure that the machine is at least one meter away from the wall on the sides and 1.5 meters from the front and back.


3. Site Conditions:

  - The machine should be installed on a flat, clean, and well-ventilated surface. Avoid placing it in areas with high temperatures or excessive dust.


4. Securing the Machine:

  - Connect and secure the front and rear racks, then fix the machine in place and calibrate its level.


5. Power Supply Connection:

  - Ensure the power cord matches the machine’s power requirements. The power supply should be 380V/50Hz. Verify that the power configuration aligns with the specifications in the manual.

  - Ground the machine for safety by connecting the ground wire to a mounting bolt on the machine's base.

  - Before operating the machine, check that all cables are properly connected and that each emergency stop button is reset.


6. Air Source Connection:

  - Verify that the air source meets the machine's requirements, which is 0.6 MPa air pressure. If it complies, connect the air source accordingly.



Air Filter Gluing Machine Qualification Certificate
