Palm Oil Filter Machine
  • Palm Oil Filter MachinePalm Oil Filter Machine

Palm Oil Filter Machine

Model:XDPP-700-II

Palm Oil Filter Machine from Jundingda factory is suitable for the gluing and folding of filter materials such as glass fiber in high-efficiency air filters without partitions. Welcome to visit our factory, and cooperate in the future!

The Palm Oil Filter Machine from Jundingda Factory is ideal for gluing and folding filter materials, such as fiberglass, used in high-efficiency air filters without partitions. We warmly invite you to visit our factory and look forward to future collaboration!

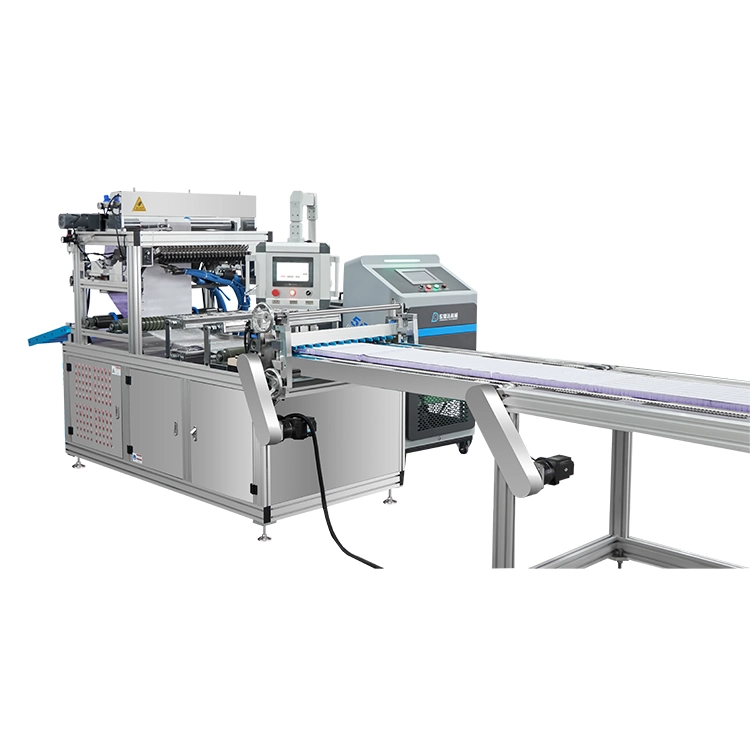

Fully automatic PP intermittent gluing production line



The working area of the equipment operator:



Safety rules for equipment installation:


●  The installation ground should be flat;

●  The power supply line should match the machine power, and the power supply line should be fixed;

●  The Palm Oil Filter Machine must be grounded, and the ground wire can be connected to the machine foot mounting bolt. The neutral wire cannot be used as the ground wire to connect to the shell;

●  Please ensure that the road to the installation location is unobstructed, and prepare a forklift of more than two tons for the transportation of the machine;

●  The left and right sides of the machine installation location should be more than one meter away from the wall, and more than 1.5 meters from the front and back;

●  The machine is fixed with anchor bolts, and the machine can also be placed on the ground with rubber pads to prevent slipping;

●  The Palm Oil Filter Machine is powered by 380V/50Hz, and a safety device and switch with appropriate capacity should be installed in front of the external power supply seat of the machine.



Chapter 3 Specifications and Installation


Technical parameters of XDPP-700-II fully automatic PP intermittent gluing production line:


Working speed

 adjustable

Maximum filter material passing width

 730mm

Wideest product width

 700mm

Product folding height range

 10~100mm

Production efficiency

 4~25m/min

Total machine power

 21.59kw

Total motor power

 1.59kw

Filter material conveying and receiving motor

 servo motor 0.75kw

Forming conveying motor

 servo motor 0.75kw

Slitting motor

 micro motor 90W

Glue machine power

 20kw

Glue strip spacing

 25.4mm

Number of glue strips

 2×25 50 strips

Air source pressure

 0.6MPa

Power supply voltage

 380V/50Hz

Glue machine

 domestic Jundingda XD-Z50L


Machine appearance and installation dimensions:


Mainframe L×W×H (length×width×height) 5000mm×1300mm×1720mm

Glue machine L×W×H (length×width×height) 850mm×800mm×1165mm


Electrical parts list


Serial number

Part name

Part model



Quantity


1 Pneumatic two-piece AFC-2000 1

2 Slitting knife cylinder TN16×25 2

3 Drag roller, wave roller cylinder SDAJ40×20-10 8

4 Glue injection head closing and separation cylinder SDA63×100-B 6

5 Manual valve 4H210-08 3

6 Solenoid valve 4V210-08-220V 1

7 Quick-connect Φ8-2 14

8 Tee Φ8 11

9 Muffler 1 point 8

10 Regulating valve Φ8-1 8

11 Regulating valve 6-M5 4

12 Regulating valve Φ8-2 4

13 Y-type conversion connector Φ8-6 2

The above products are priced at 145,000 yuan including tax and freight. They will be shipped upon receipt of payment. We are responsible for installation and commissioning.
