Two-Stations Three-Axis Dispensing Machine
  • Two-Stations Three-Axis Dispensing MachineTwo-Stations Three-Axis Dispensing Machine
  • Two-Stations Three-Axis Dispensing MachineTwo-Stations Three-Axis Dispensing Machine
  • Two-Stations Three-Axis Dispensing MachineTwo-Stations Three-Axis Dispensing Machine

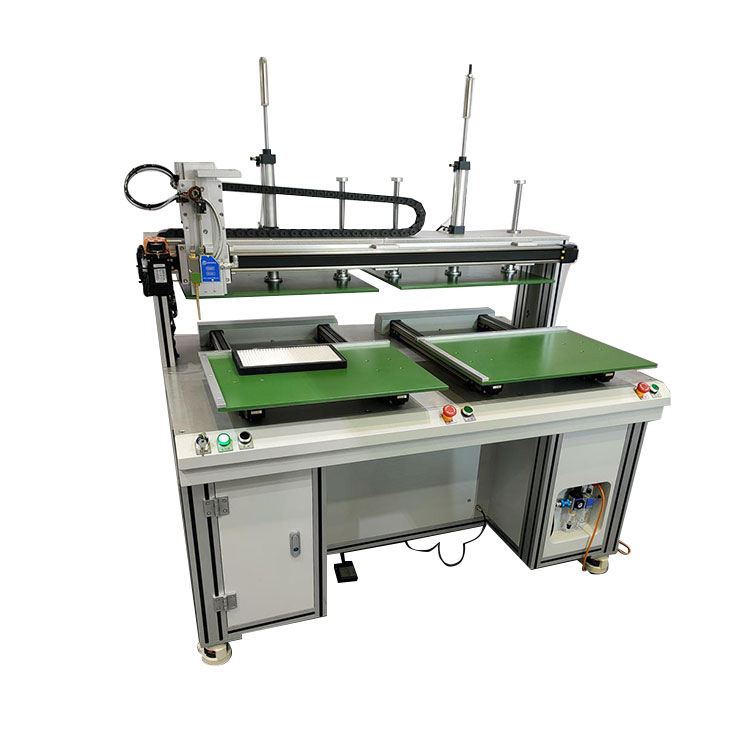

Two-Stations Three-Axis Dispensing Machine

You can rest assured to buy two-stations three-axis dispensing machine from our factory. Double-station three-axis platform Dimensions: 1500*1050*1600; Product model XD2-651/- (Note: Double platform product processing size 600*450*130).

You can rest assured to buy two-stations three-axis dispensing machine from our factory. The company's professional team tailors a low-cost, highly centralized, and highly integrated intelligent dispensing machine control system specifically for the dispensing machine industry. Applicable industries: building material stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, printing shops, construction projects, energy and mining, etc.


Two-Stations Three-Axis Dispensing Machine

Product Description


1. Replace manual specific dispensing operations to achieve automated production, simple and convenient, high-speed and accurate;

2. Adopt double-station with pressure-maintaining design to improve work efficiency by about 40%. (Adjustable range of pressure plate 5-100mm, using adjustable cylinder)

3. The two-stations three-axis dispensing machine has needle control, no external teaching disk is required, and it is more convenient to debug than similar products;

4. Ultra-quiet operation;

5. Compact size, sealed structure, reasonable layout, higher cost performance;

6. According to the principle of ergonomics, the table height is optimized to better meet the worker's operation process and reduce the worker's fatigue.



Product Details



Project

Dispensing Machine

Model

XD-651/XD-1500*1050*1600

Processing range (mm)

X, Y, Z axis

2*600X450X100/

Maximum speed (mm/s)

XY/Z axis

600mm/s

Maximum load (Kg) (<80mm/s)

Table/ Z axis

30Kg      5Kg

Programming method

Teaching box programming

Transmission method

Timing belt and screw

Motor system

Servo precision motor

Repeat positioning accuracy (mm)

±0.02

Power requirements

220V  800W

Environmental requirements

5~40℃

Dimensions (mm)

1500*1050*1600

Weight (Kg)

220/260





Product Features



◎High-strength equipment body makes the XYZ axis verticality high, improving the processing accuracy of the equipment;

◎Standalone operation is the easiest;

◎No need to use an external computer to run standalone, simple operation settings;

◎Humanized teaching box allows you to easily complete a variety of complex programs, providing: batch modification, array copying, graphic translation, graphic scaling, automatic rounding and other advanced functions;

◎This two-stations three-axis dispensing machine supports three-axis space linear interpolation, three-axis space arc interpolation, elliptical arc interpolation;

◎Adopt speed look-ahead algorithm, automatic rounding corner speed;

◎Track lag opening, early closing and other functions to solve the problem of glue accumulation at the starting point and end point.



Typical applications



◎Fixation and protection of electronic parts

◎Coating and bonding of hardware parts

◎Hot melt adhesive bonding and coating

◎Gluing of purifier frame

◎Hot melt adhesive gluing of headlights


Two-Stations Three-Axis Dispensing Machine


Configuration List

Project

Product name and specifications

Brand

Quantity

Remark

Frame

Sheet metal, profile

European standard 4080 right angle

1



Servo motor

86

Research and control

3

Brake motor

Servo drive

86

Research and control

3



Guide rail

Dual-axis core silent

TBI

8



Module

45+60

KNK

3

Widened heavy-duty type

Timing belt

S3M

Gates

4



Z-axis module

1605 screw module

Multi-company

1

Brake motor

Control system

Three-axis glue

Full-time

1



Table

20mm bakelite



1



Switch power supply

S350-48, S100-24

Taiwan Mean Well

2



Photoelectric switch



Hua Yi Feng

3



Electronic control



Chint

1



Wire and cable

National standard flexible cable 0.5

Cardiff
