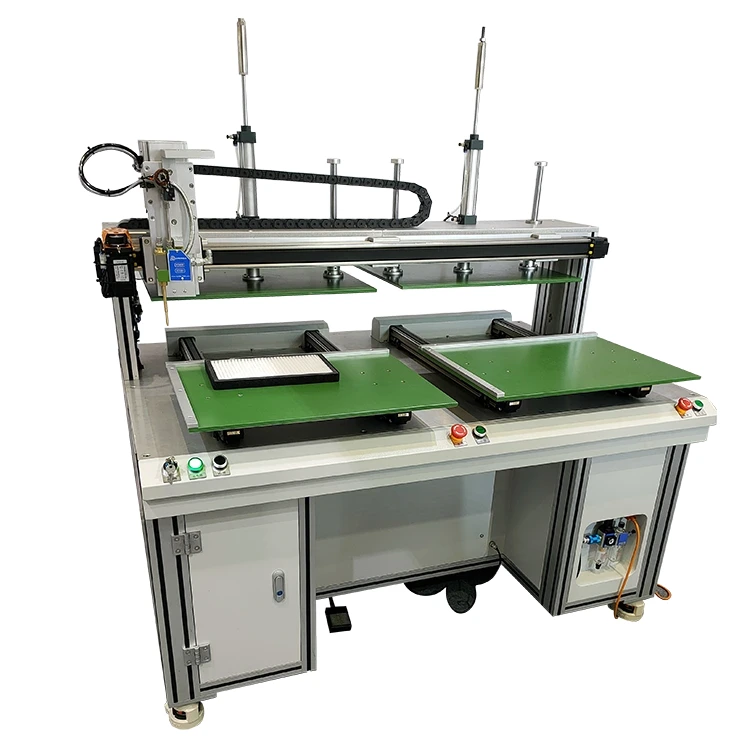

1. Replace manual specific dispensing operations to achieve automated double Station Dispensing Machineion, simple and convenient, high-speed and accurate;
2. Adopt double-station pressure-maintaining design to improve work efficiency by about 40%. (Adjustable range of pressure plate 5-100mm, using adjustable cylinder)
3. The machine has needle control, no external teaching disk is required, and debugging is more convenient than similar double Station Dispensing Machines;
4. Ultra-quiet operation;
5. Compact size, sealed structure, reasonable layout, higher cost performance;
6. According to the principle of ergonomics, the table height is optimized, which is more in line with the workers' operation process and reduces the workers' fatigue.
Project |
Dispensing machine |
Model |
XD-651/XD-1500*1050*1600 |
Processing range (mm) |
X, Y, Z axis 2*600X450X100/ |
Maximum speed (mm/s) |
XY/Z axis 600mm/s |
Maximum load (Kg) |
(<80mm/s) Table/Z axis 30Kg 5Kg |
Programming method |
Teaching box teaching programming |
Transmission method |
Synchronous belt plus screw |
Motor system |
Servo precision motor |
Repeat positioning accuracy (mm) |
±0.02 |
Power supply requirements |
220V 800W |
Environmental requirements |
5~40℃ |
Dimensions (mm) |
1500*1050*1600 |
Weight (Kg) |
220/260 |
● High-strength equipment body makes the XYZ axis verticality high, improving the processing accuracy of the equipment;
● Standalone operation is the easiest;
● No need to use an external computer to run standalone, simple operation settings;
● Humanized teaching box allows you to easily complete a variety of complex programs, providing: batch modification, array copying, graphic translation, graphic scaling, automatic rounding and other advanced functions;
● Support three-axis space linear interpolation, three-axis space arc interpolation, elliptical arc interpolation;
● Adopt speed look-ahead algorithm, automatic rounding corner speed;
● Track lag opening, early closing and other functions to solve the problem of glue accumulation at the starting point and end point.
● Fixation and protection of electronic parts
● Coating and bonding of hardware parts
● Hot melt adhesive bonding and coating
● Gluing of purifier frame
● Hot melt adhesive gluing of headlights
