Trimming Machine for Filter
  • Trimming Machine for FilterTrimming Machine for Filter

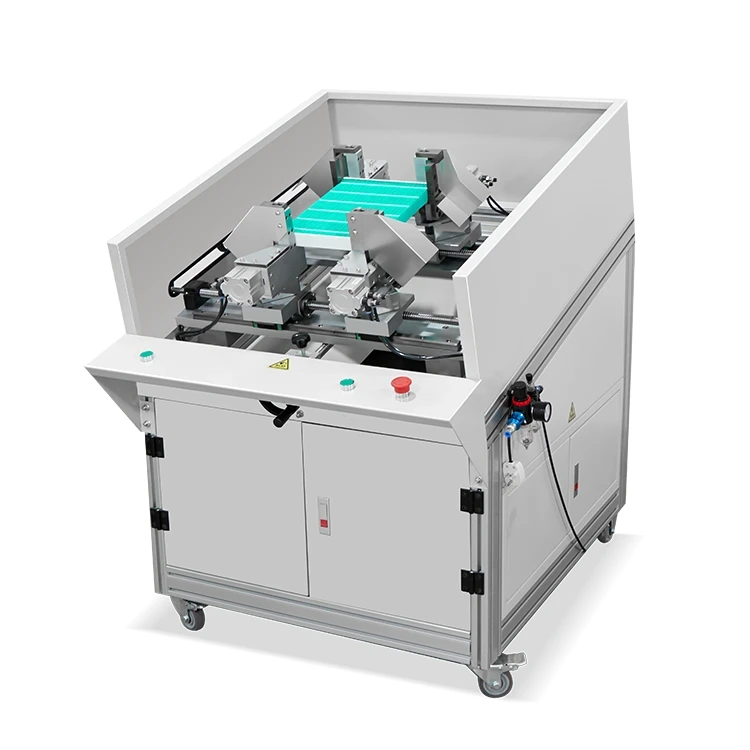

Trimming Machine for Filter

Model:XD-2S4TB200mm

Jundingda machinery’s Trimming Machine for Filter is an advanced device designed to precisely trim and refine the edges of filter materials. This machine ensures that filter components are cut to exact specifications, providing a clean and uniform edge essential for optimal filter performance and proper fit. It is particularly useful in the production of air filters, liquid filters, and other filtration products where edge precision is critical.



Technical parameters:


1. Power supply: 220V, 50HZ

2. Power: about 7.5KW



Total equipment price: (RMB) 80,000, including tax.


Glue machine technical parameters


A, capacity 20L, metering pump 20cc. Working voltage AC220V, power 7.5kw

B, 2 sets of adjustable guns, adjustment range 5-70MM, no need to replace scrapers

C, 2 hoses 3 meters long



Functions that the equipment should have:


1. This Trimming Machine for Filter adopts servo motor human-machine interface control, with automatic conveying, automatic gluing, and automatic cutting of edge strips. (Servo motor Japan Mitsubishi, touch screen Delta

2. Suitable for whole roll material: diameter 600mm

3. Reverse glue gun, gluing width 5-70mm.

4. This machine is suitable for single or multiple people to glue the edge at the same time. (The speed of gluing can be independently controlled, and the effective length of the edge strip is 50-500mm)

5. The overall frame is made of aluminum alloy and nickel-plated. The glue gun bracket can be adjusted up and down, left and right.

6. Machine size: 3500*2600*1400mm

7. The above products include tax and freight and the delivery time is 20 days


Trimming Machine for Filter Qualification Certificate
