Filter Edge Trimming Machine
  • Filter Edge Trimming MachineFilter Edge Trimming Machine

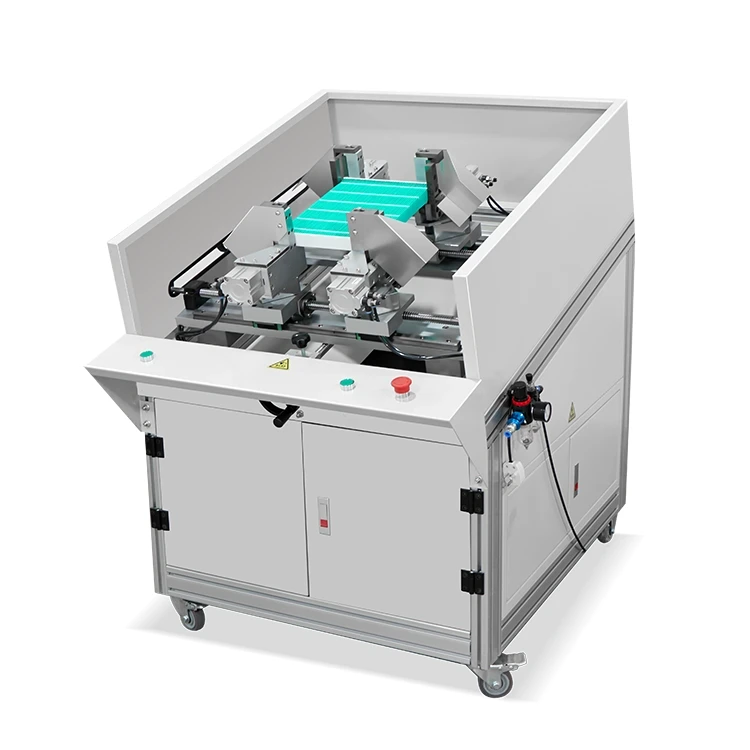

Filter Edge Trimming Machine

Model:XDHX-4-800mm

The Filter Edge Trimming Machine is a specialized piece of equipment designed to precisely trim and refine the edges of filter materials. Essential in the production of filters, this machine ensures that edges are cut to exact specifications, enhancing the filter's performance and ensuring a perfect fit in its application. Its precise trimming capabilities contribute to the overall efficiency and effectiveness of the filtration system.

This Filter Edge Trimming Machine is mainly used for trimming the edges of the two ends of the multi-layer filter material after folding, ensuring that the length of the filter material after trimming meets the length of the filter element to be made.



Technical parameters


1. The length of the filter material that can be trimmed: ≤ 1000MM

2. The width of the filter material that can be cut: ≤ 500MM

3. Compressing width: 150mm~500mm

4. Blade diameter: Φ275mm

5. Motor power: 2.2kw

6. Working air pressure: 0.6mpa

7. Power supply voltage: 380V/50hz

8. Machine weight: 500kg

9. Overall dimensions: 1250×1500×1300mm (length×width×height)



Filter Edge Trimming Machine Qualification Certificate
