Semi-Automatic Edge Bonding Machine
  • Semi-Automatic Edge Bonding MachineSemi-Automatic Edge Bonding Machine

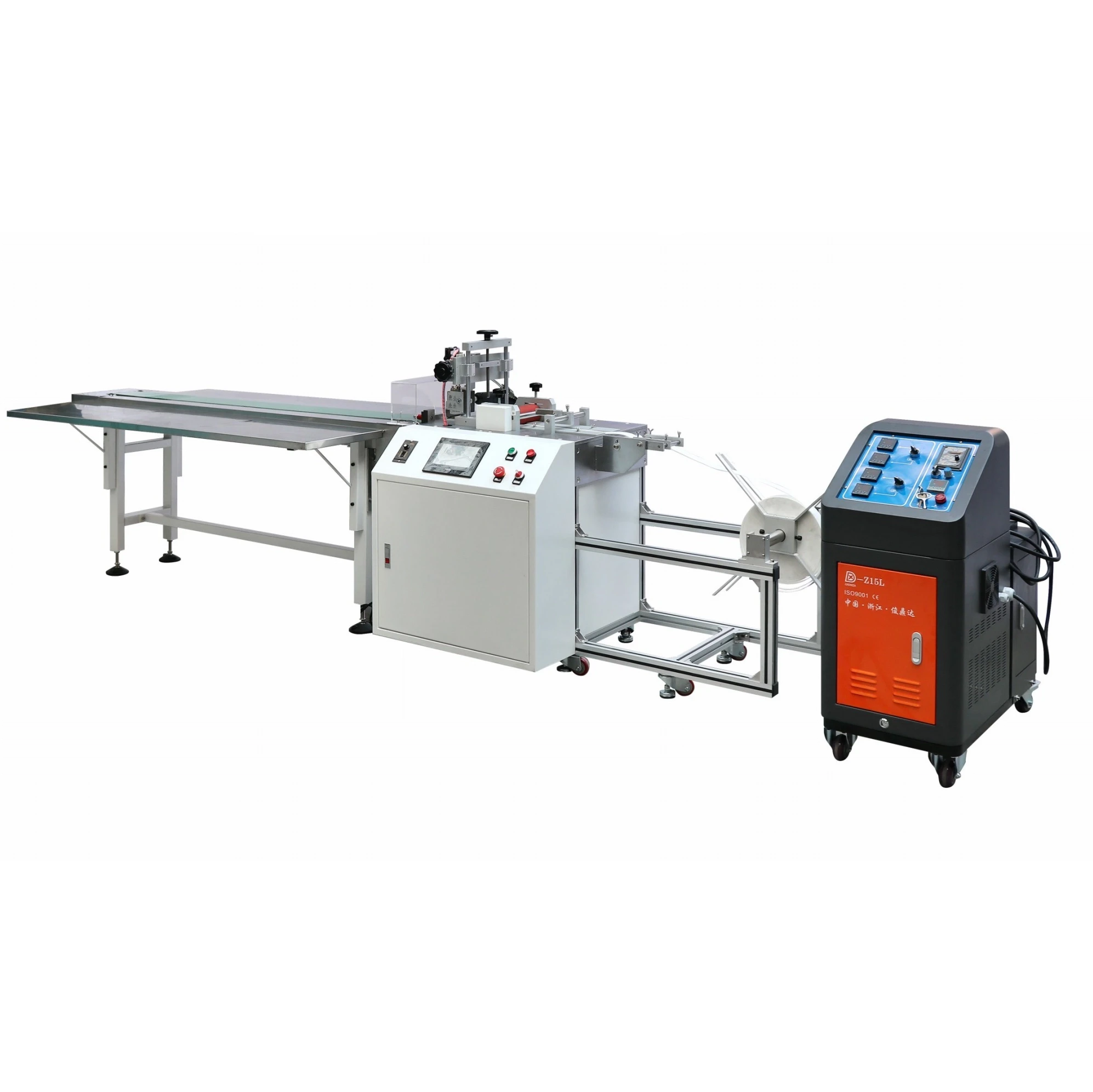

Semi-Automatic Edge Bonding Machine

Model:XD-FCT200mm

The Jundingda Machinery Semi-Automatic Edge Bonding Machine is designed to provide precise and efficient edge bonding for various materials. This machine combines manual and automated functions to offer greater control and flexibility, making it suitable for applications that require accurate adhesive application along edges.

Jundingda Machinery high quality Semi-Automatic Edge Bonding Machine is a versatile piece of equipment designed to streamline the process of applying adhesives to the edges of materials. Ideal for various industries, this machine offers a blend of manual control and automated precision, ensuring consistent bonding results while maintaining flexibility in operation. Its design allows for efficient handling of different materials, making it an essential tool for edge bonding tasks that require accuracy and reliability.



Semi-Automatic Edge Bonding Machine Technical Parameters:


Power Supply: 220V, 50Hz

Power Consumption: Approximately 7.5KW


Equipment Included:


Name

Quantity

Model

Gray Filter Edge Banding Machine

1 unit

XD-FCT200

Glue Hose

1 piece

2.5 meters

Adjustable Glue Gun (5-70mm)

1 set

-

Hot Melt Glue Machine

1 unit

XD-Z15L



Semi-Automatic Edge Bonding Machine Functions:


Controlled by a stepper motor with a human-machine interface, featuring automatic feeding, automatic gluing, and automatic edge strip cutting.

Suitable for whole roll edge strip materials with adjustable edge strip widths of 8-70mm.

The glue gun uses an adjustable gluing method, eliminating the need to replace glue plates, with a gluing length range of 50-2000mm.

The machine is equipped with two stainless steel tables on both sides, allowing for single or multiple operators to simultaneously apply edge strips and glue.

Independent control of the edge banding and gluing speed, with each edge strip length independently settable, and adjustable processing interval times via the program.

The glue gun bracket can be adjusted up, down, left, and right.

Includes a 15L heated glue tank for quick melting and to support continuous, uninterrupted production.

Dimensions: 300012001200 mm


Semi-Automatic Edge Bonding Machine Qualification Certificate
