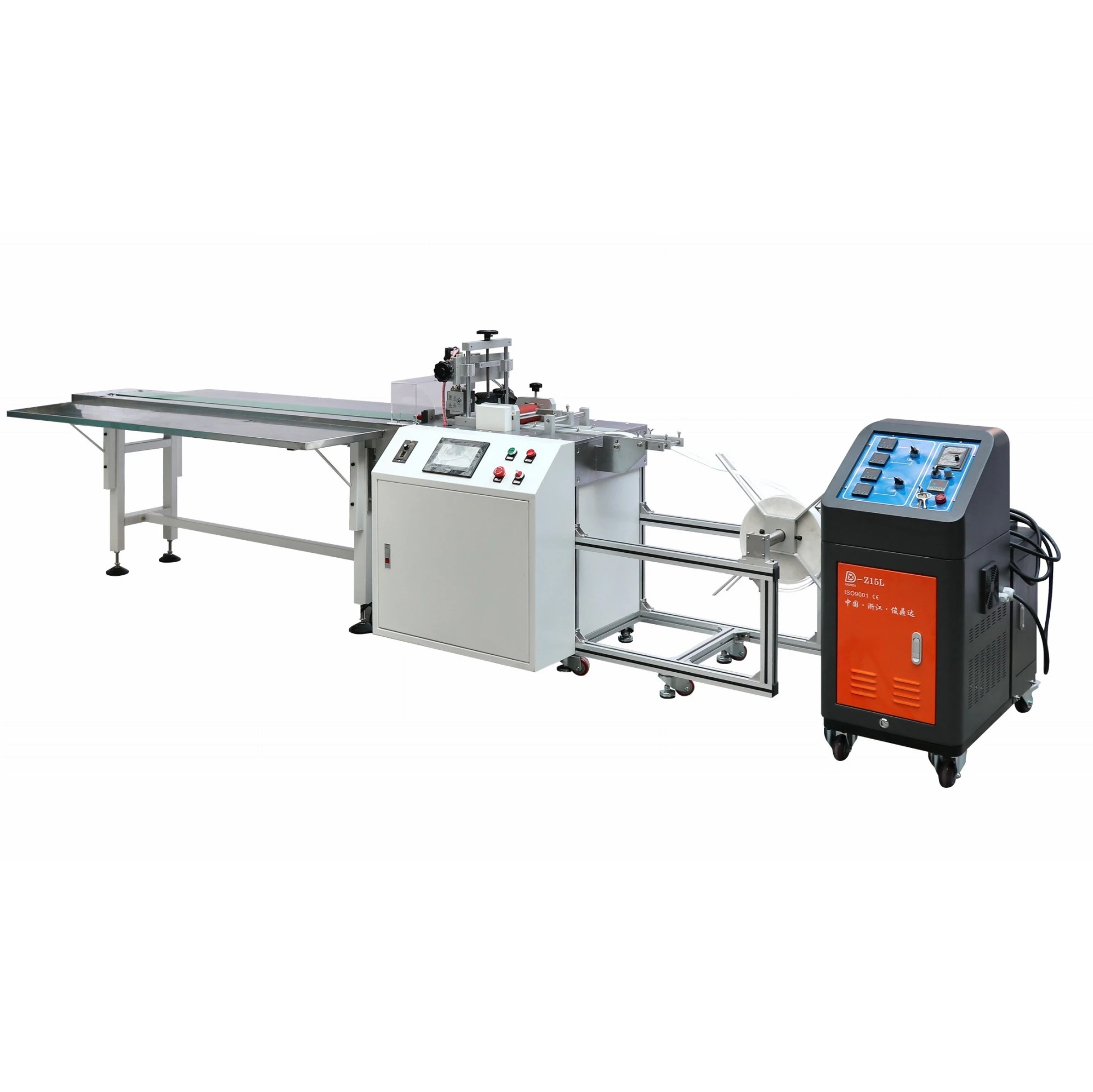

Jundingda Machinery’s advanced Edge Gluing Machine is suitable for straight edge banding and trimming of medium density fiberboard, block board, solid wood board, particleboard, polymer door panel, plywood, etc. It can cut the double-sided glued edge banding, glue the edge banding, press, flush, chamfer, rough trim, fine trim, scrape and polish at one time. The edge banding is delicate, smooth, and has a good hand feel. The sealing line is straight and smooth. The equipment is stable, reliable, durable, and moderately priced. It is especially suitable for manufacturers of large and medium-sized furniture, cabinets and other panel furniture.
Double-sided glue coating, edge banding and base material are evenly coated at the same time. Step less speed regulation for straight and special shapes, electronic time control and stroke control, accurate length of feeding and cutting.
Edge band thickness |
0.4-3mm |
Edge band width |
15-50mm |
Minimum edge band radius |
20mm |
Edge band conveying speed |
0-18m/min |
Conveying power |
0.18KW |
Heater |
2.7KW |
Air pressure |
6mpa |
Weight |
280KG |
