As the professional manufacturer, we would like to provide you Paper Folding Machine Automatic. The Paper Folding Machine Automatic's automatic settings enable it to perform multiple folds, such as half-fold, letter-fold, Z-fold, and more, without the need for manual adjustments. Its high-speed operation and user-friendly interface make it ideal for offices, print shops, and production environments where consistent and reliable paper folding is required.
The automatic paper folding machine helps save time, reduces labor costs, and ensures professional results with every fold, making it a valuable addition to any workflow that involves significant amounts of paper handling and processing.

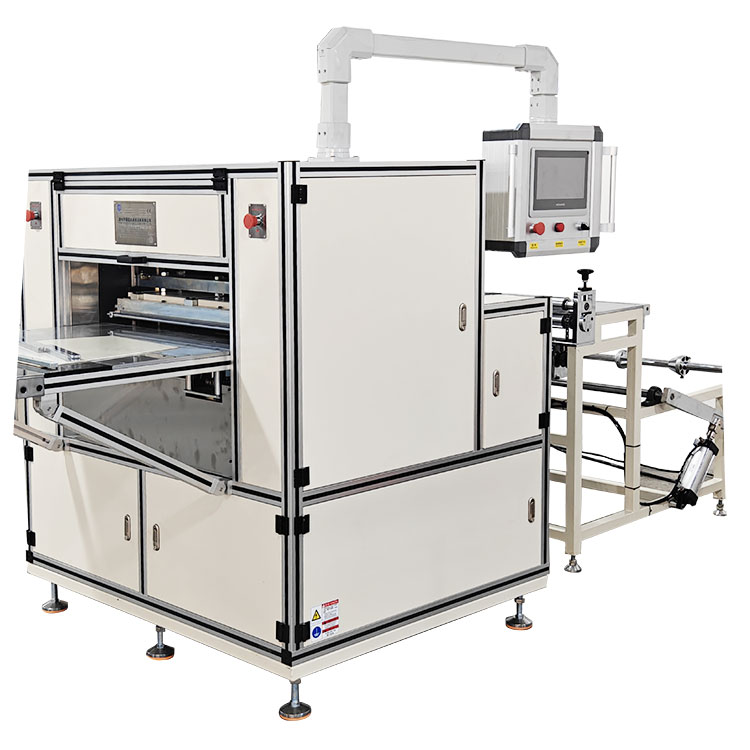

PLCZ 55-1000-S Full-Auto CNC Knife Paper Pleating Production Line (Third Generation Plus)
1. Pre-slitting Conveyor
2. Filter Paper Pleating Machine (equipped with pre-heater and monitor)
1. Model 55-1000-S Pre-Slitter
Speed |
0.5m/min - 12m/min (adjustable) |
Adjustable Width |
300-1000mm |
Power Supply |
220V/50Hz |
Motor Power |
0.75kW |
Working Air Pressure |
0.6MPa |
Machine Weight |
450kg |
Size |
1800*1400*1240mm (L*W*H) |
2. Paper Folding Machine: Model 55-1000-S
Max Width |
1000mm |
Adjustable Pleating Height Range |
8-65mm |
Pleating Speed |
0-140 pleats/min (adjustable) |
Power Supply |
380V/50Hz |
Motor Power |
8kW |
Pre-Heater Power |
8kW |
Heating Temperature Range |
Normal - 250°C |
Working Air Pressure |
0.6MPa |
Size |
2300*1900*1700mm (L*W*H) |
Machine Weight |
1200kg |
1. The pre-slitting conveyor can adjust the slitting size accurately according to different filter specifications, using variable frequency drive and pneumatic knives. It features convenient operation, precise slitting, and an infrared monitoring system for control.
2. The paper folding machine can pleat filter papers of various pleat heights (M-type, W-type, T-type, etc.), with the pleat distance freely set via a computer.
3. The folding machine uses alternating upper and lower blades to complete the pleating process. The blade distance is automatically adjusted by the computer, allowing for various pleating heights to be achieved with precision, ensuring even and uniform pleats.
4. The filter paper undergoes automatic marking, pleating, processing, and pre-heating on the folding machine.
5. The angle of the folding blades can be adjusted freely to ensure that no filter paper material is damaged during the pleating process.
