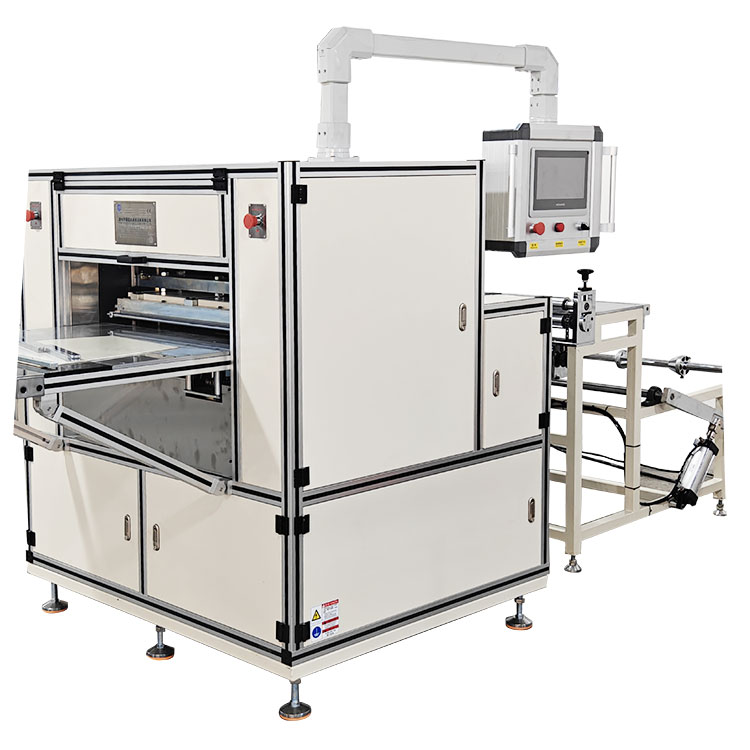

The JUNDINGDA’s Electric Paper Folding Machine should be placed in a suitable workplace or a suitable location of the filter assembly production line;
Draw the center line of the equipment installation in the workshop according to the installation location;
After removing the packaging box and dust film, use a forklift to put the machine in a fixed position or the location where the production line is installed. The side distance from the wall must be greater than one meter, and the front and back must be greater than 1.5 meters.
The ground where the machine is placed should be flat, clean and well ventilated; do not place the machine in a high temperature and dusty environment;
Connect and fix the front and rear racks, fix the machine, and calibrate the machine level.
The power cord should match the power of the machine. The power supply uses 380V/50Hz. Please check whether the power configuration is consistent with the specification in the manual.
The machine must be grounded for protection. The ground wire can be connected to the machine foot mounting bolt.
Before using the machine, please check whether the cables of each single machine are connected well and whether each emergency button is reset.
When connecting to the air source, please check whether the air source meets the requirements of the machine. The air source used by the machine is 0.6MPa air pressure. If it meets the requirements, it can be connected.
