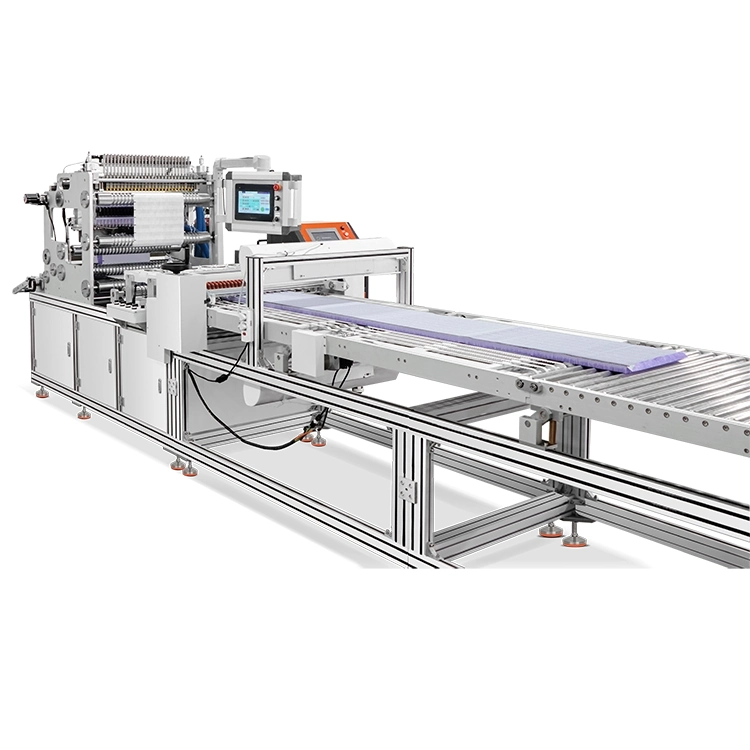

Foaming High-Speed Gluing Machine
  • Foaming High-Speed Gluing MachineFoaming High-Speed Gluing Machine

Foaming High-Speed Gluing Machine

The Jundingda’s advanced Foaming High-Speed Gluing Machine represents the pinnacle of advanced technology, engineered for the swift and exact application of adhesives in both foaming and high-speed production environments. This sophisticated equipment is adept at managing a wide range of adhesive types and foaming substances, offering an exceptionally efficient solution for industries that demand both speed and reliability in their bonding processes.

Jundingda’s advanced Foaming High-Speed Gluing Machine is engineered for efficient production in various industrial applications. This machine excels in automating and expediting the gluing process, integrating high-speed operations with precise foam application. It enhances productivity by streamlining gluing tasks, ensuring consistency and high-quality results in foam bonding.



Foaming High-Speed Gluing Machine Product parameter


1. Maximum product width: 820mm

2. Incoming roll diameter: ≤ 1200mm (except pp)

3. Production speed: 4-27m/min

4. Strip spacing: 25.4mm

5. Number of glue strips: 2X26 (with glue cutting function, each nozzle is equipped with a solenoid valve)

6.Power supply voltage: 380V/50HZ

7. Origami height: 10-60mm

8. Total machine power: 17.5KW including hot melt adhesive machine 7.5kw

9. Working air pressure: 0.6mpa

10. Machine weight: 800KG

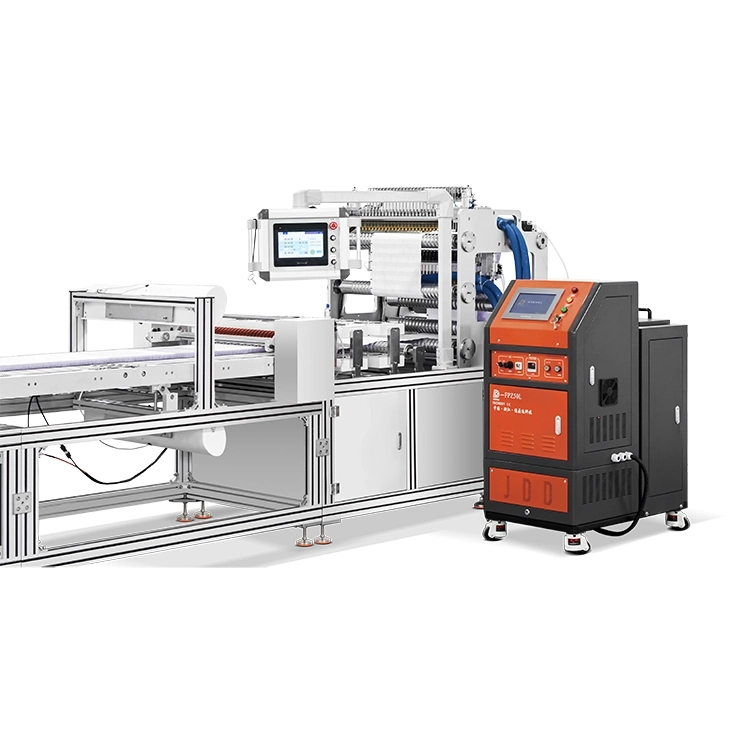

11. Equipped with an XD-FZ50L foaming hot melt adhesive machine and 2 3-meter hoses, 2 3.6-meter hoses and 2 spray guns (each spray gun has 26 solenoid valve controls, which means that each spray gun is can be controlled independently)

12. Equipped with 2 0.75KW servo motors and 2 1:10 precision reducers

13. Control system (PLC) Brand: Mitsubishi*1

14. Servo controller and servo motor brand: Fuji*2

15. Touch screen brand: Taiwan Wei Luntong*1

16. Cylinder brand: Airtac*4

17. Low-voltage electrical appliance brand: Chint*12

18.Power supply brand: Taiwan MEAN WELL*2

19. Cooling fan brand: Taiwan Sanxie*16

20. Air curtain machine: Guangdong Triangle Co., Ltd.*2

21. Color mark sensor: American Banner*1

22. Appearance dimensions of the glue machine: 900×550×1300mm (length×width×height)

23 Host appearance size: 5550×1220×1700mm (length×width×height)



Foaming High-Speed Gluing Machine Qualification Certificate
