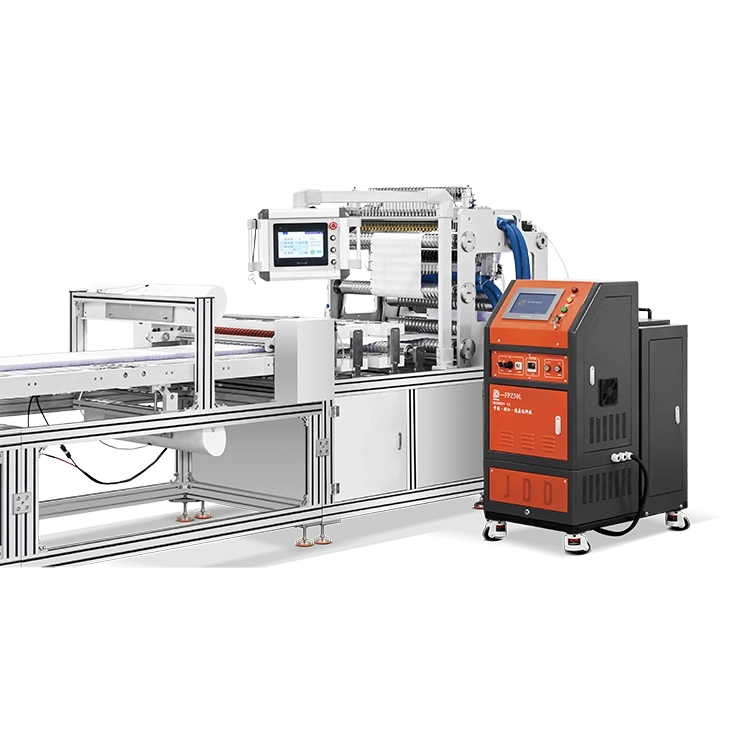

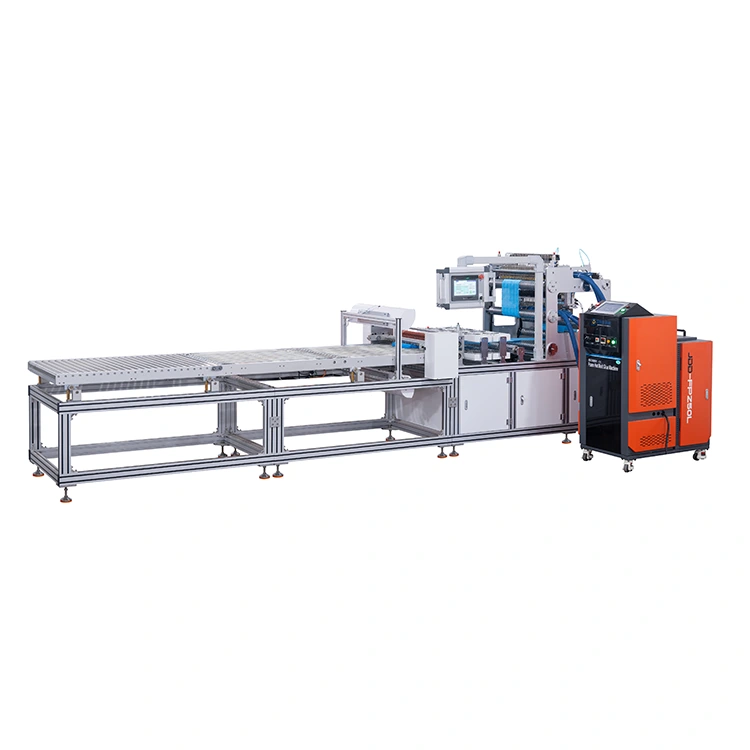

Jundingda’s Air Filter Foam Gluing Machine is engineered for the precise and efficient gluing of foam used in air filters. This advanced machine automates the foam bonding process, ensuring consistent application and high-quality results. It optimizes production by integrating high-speed operation with precise glue application, enhancing the efficiency and reliability of air filter manufacturing.
1. Maximum width of product: 820mm,folding height: 10-60mm, production speed: 4-27m/min.
2. Nozzles Spacing: 25,4mm, the number of glue strips: 2X26(with the function of breaking glue, each nozzle with solenoid valve).
3. Power supply voltage: 380V/50HZ,working air pressure: 0.6mpa.
4. The whole machine is controlled by Mitsubishi PLC,Japan Fuji servo drive.
After the hot melt adhesive is melted, it is mixed with inert gas or air and then output to the glue gun. After the glue gun circulates outside, it flows back to the melting cylinder and re-enters the gear pump. The foaming rate is adjusted by nitrogen or air. The foaming efficiency of special foaming adhesive is up to 55%. It can save 30-50% of adhesive (depending on the selected adhesive model). It makes the adhesive softer and does not break, and the product has better sealing, similar to a sponge. The main engine is driven by servo drive. The machine is mainly used for air purification filter elements, household appliances and electronic foaming and sealing filling.
1. Fast melting speed, the amount of glue can be adjusted by servo.
2. Using foam hot melt glue machine glue, saving between 35-50%, foaming efficiency 35-55%.
3. Foaming gas nitrogen or dried air.
4. Suitable for large folding distance support, round product gluing improves softness and bendability.
5. Glue on the humidifier filter to increase the humidification amount.
