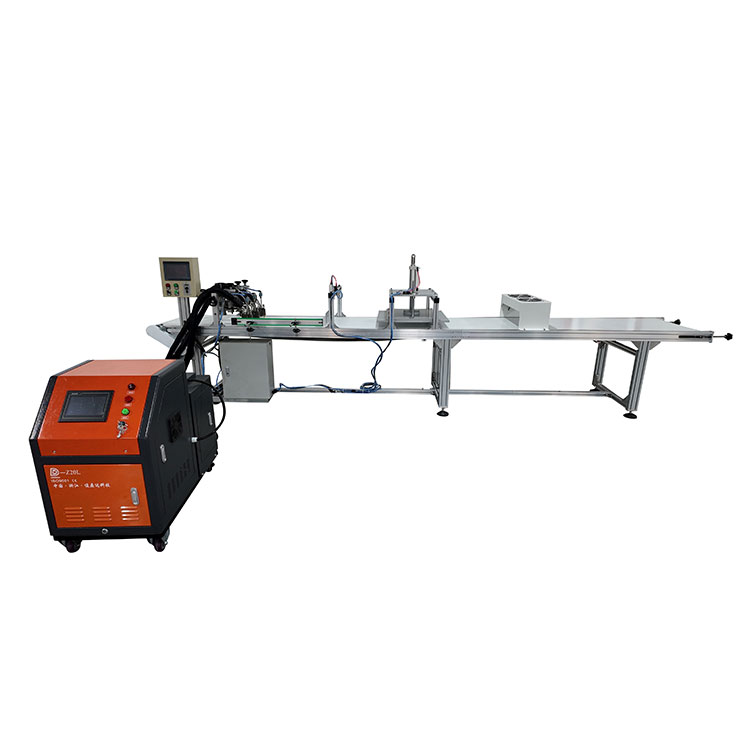

The gCenter Line Gluing Machine produced by China Jundingda Machinery Company is a kind of industrial equipment, mainly used for gluing workshop processing and production of materials for gluing treatment. TheCenter Line Gluing Machine can evenly coat the glue on the surface of the item or between the materials to play a bonding role. TheCenter Line Gluing Machine is divided into manual and automatic two kinds, manual requires workers to apply glue manually, and automatic is the use of machine work, improve the gluing efficiency and bonding quality.
● Power Supply：380V,50HZ
● Power：about 10.5KW
|
Item |
Quantity |
Item No. |
Price (CNY) |
|
Central Line Gluing Machine |
1 |
XD-ZX4000 |
38,000 |
|
Hot Melt Glue Machine |
1 |
XD-Z20L |
30,000 |
Glue Machine XD-Z20L, Power 5.5KW,AC220V
PLC Control:
The PLC system sets the glue length based on the product's length. The hot melt glue is applied onto the Teflon belt, and the product is positioned by a stopper for precise glue application and transfer under pressure.
Key Components:
Zero-Drip Glue Guns: 3 pcs
Hoses: 3 pcs (2.5m, 3m, 4m)
Glue Width: 0-8mm
Structure:
Frame: Entirely made from aluminium alloy with nickel-plated treatment for durability.
Adjustable Glue Gun Holder: Can be moved up, down, left, and right, along with micro-adjustment for the cylinder in the vertical direction.
Additional Features: Back pressure and shaping function to ensure consistent glue application.
Dimensions:
4000mm (L) x 600mm (W) x 800mm (H)
